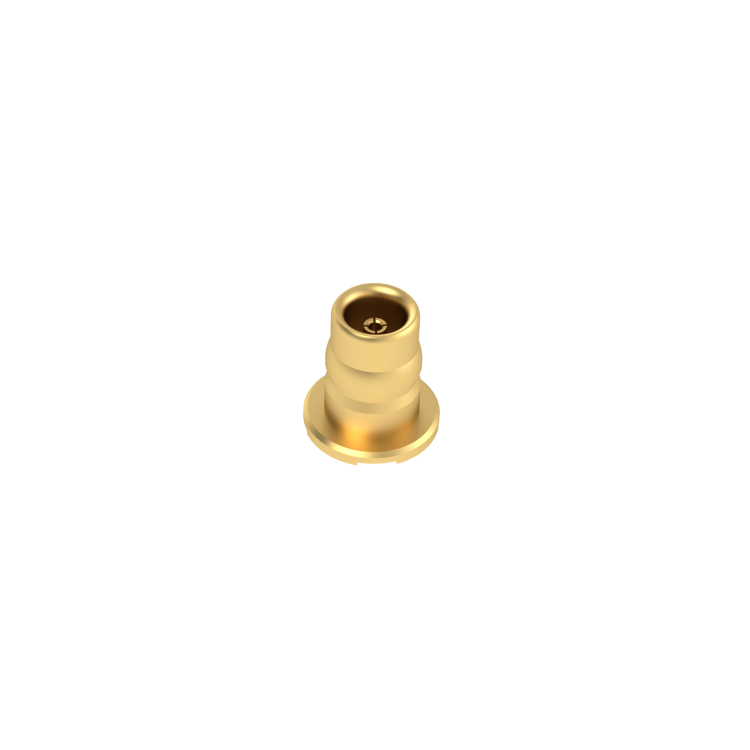

QN / SMT RECEPTACLE

R164501023 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets	Download
Datasheets
3D.IGS

R164501023

Brand RADIALL

Product Type Connectors

Interface I QN

Model PCB RECEPTACLE

Max Frequency (GHz) 6

Impedance (Ohm) 50

Geometry STRAIGHT

PCB Mounting SMT

Connector Type JACK

Gender 1 FEMALE

Mating System QUICK-LOCK

Center Contact Plating NPGR

Body Plating NPGR
