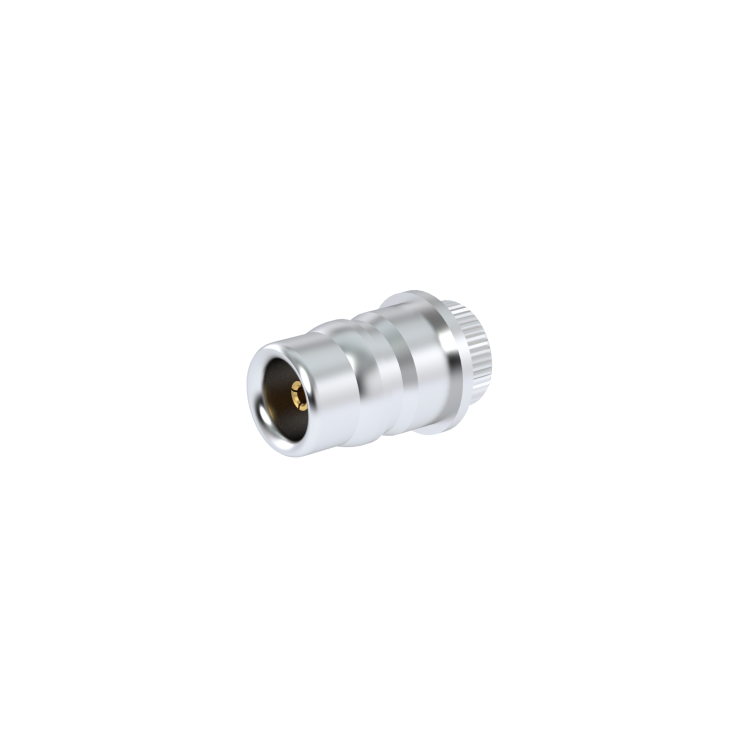

QN / PRESS-IN RECEPTACLE

R164540027

Brand: RADIALL

Product Type: Connectors

Interface I: QN

Model: PANEL RECEPTACLE

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: PRESS MOUNT

Connector Type: JACK

Gender 1: FEMALE

Mating System: QUICK-LOCK

Center Contact Termination: CYLINDRICAL

Center Contact Plating: GOLD 1.3 OVER COPPER 2.5

Body Plating: BBR 0.5 OVER SILVER 3

OR
QN / PRESS-IN RECEPTACLE

R164540027 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
