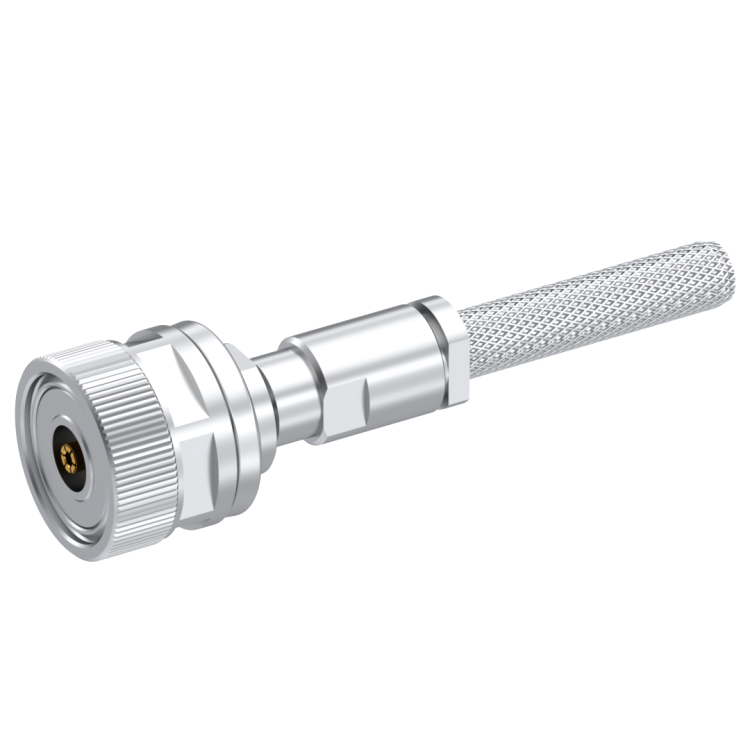

PC7 / PRECISION SEXLESS CABLE MHD 142

R151064141 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Datasheets
PC7 / PRECISION SEXLESS CABLE MHD 142

R151064141

Brand RADIALL

Product Type Connectors

Interface I PC7

Model CABLE CONNECTOR

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK, PLUG

Gender 1 PC7

Cable Standard MHD 142

Cable Attachment SOLDER TYPE

Cable Groups 5/50 S

Mating System SCREW-ON

Center Contact Plating GOLD 1.3 OVER NICKEL 2

Body Plating PASSIVATED
