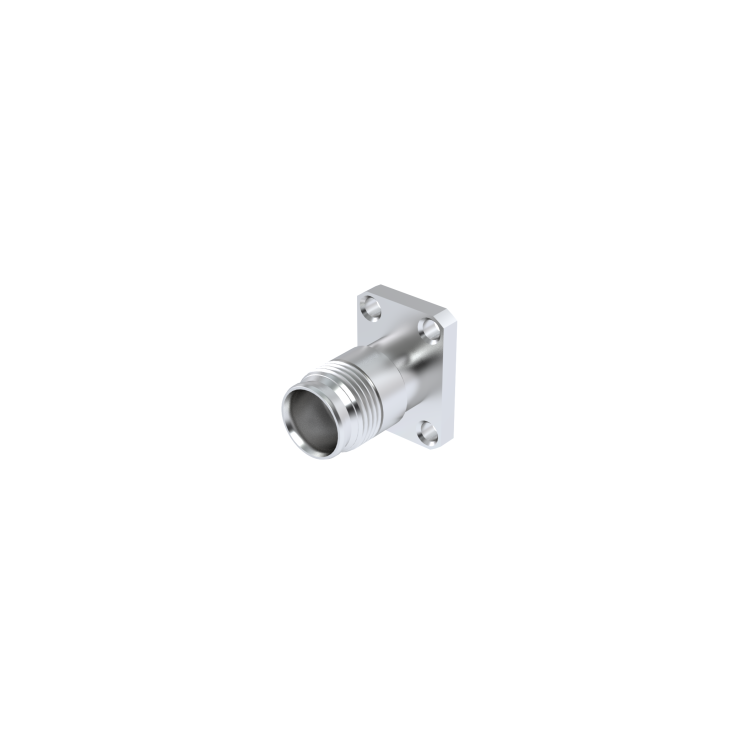

NEX10 / STRAIGHT JACK FLANGE 12.7 x 17.5, SOLDER CABLE .141
R180252007 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R180252007
Product Type Connectors
Interface I NEX10
Model CABLE CONNECTOR
Specific Feature PANEL SEALED
Max Frequency (GHz) 20
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type JACK
Gender 1 FEMALE
Cable Standard RG402
Cable Attachment SOLDER TYPE
Cable Groups .141''/50 SR
Mating System SCREW-ON
Center Contact Plating SILVER
Body Plating BBR
