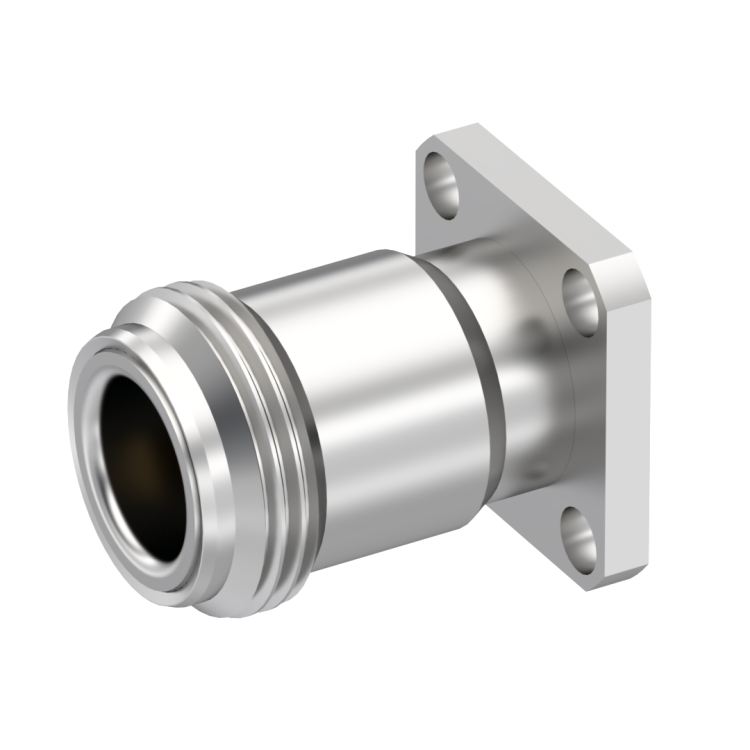

N / UNIVERSAL 3/4 INCH SQUARE FLANGE JACK RECEPTACLE

R161418000

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: PANEL RECEPTACLE

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: AUXILLIARY CONTACT

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: BBR

Click here to check availability
OR
N / UNIVERSAL 3/4 INCH SQUARE FLANGE JACK RECEPTACLE

R161418000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
