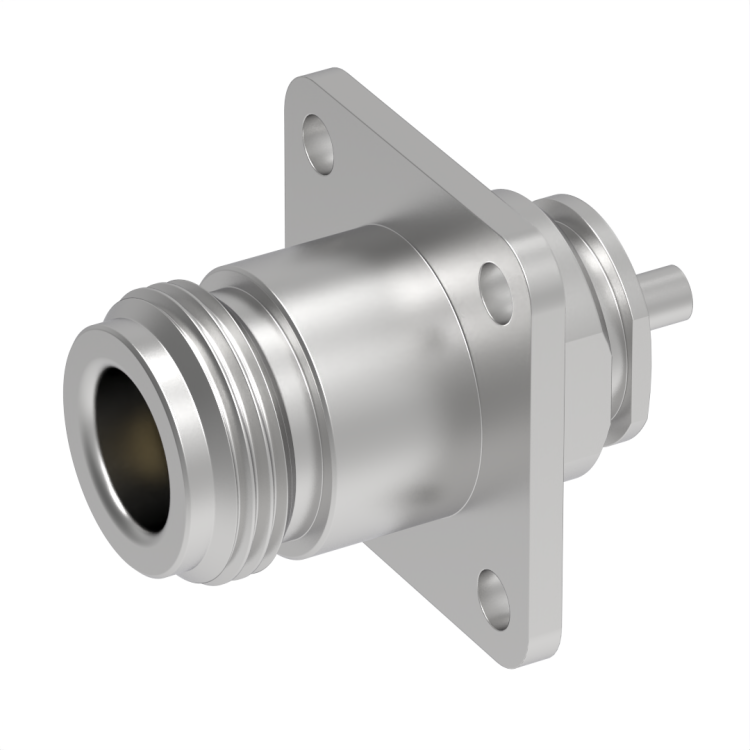

N / STRAIGHT SQUARE FLANGE JACK SOLDER TYPE - CABLE .085

R161276300

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: CABLE CONNECTOR

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KS 1, RG 405

Cable Attachment: SOLDER TYPE

Cable Groups: .085''/50 SR

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: BBR

OR
N / STRAIGHT SQUARE FLANGE JACK SOLDER TYPE - CABLE .085

R161276300 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
3D.IGS
3D.STEP
