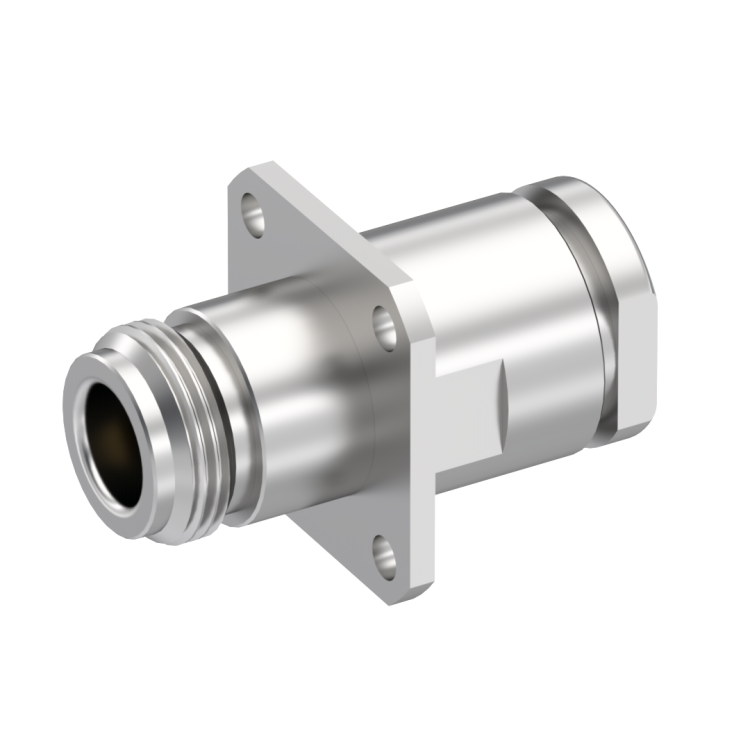

N / STRAIGHT SQUARE FLANGE JACK CLAMP TYPE - CABLE 10+11/50 S+D

R161270000

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: CABLE CONNECTOR

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KX 13, KX 4, KX 8, RG 11, RG 144, RG 165, RG 213, RG 214, RG 216, RG 225, RG 393

Cable Attachment: CLAMP TYPE

Cable Groups: 10/50 D, 10/50 S, 10/75 D, 10/75 S, 11/50 D, 11/50 S, 11/75 D, 11/75 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: BBR

OR
N / STRAIGHT SQUARE FLANGE JACK CLAMP TYPE - CABLE 10+11/50 S+D

R161270000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
