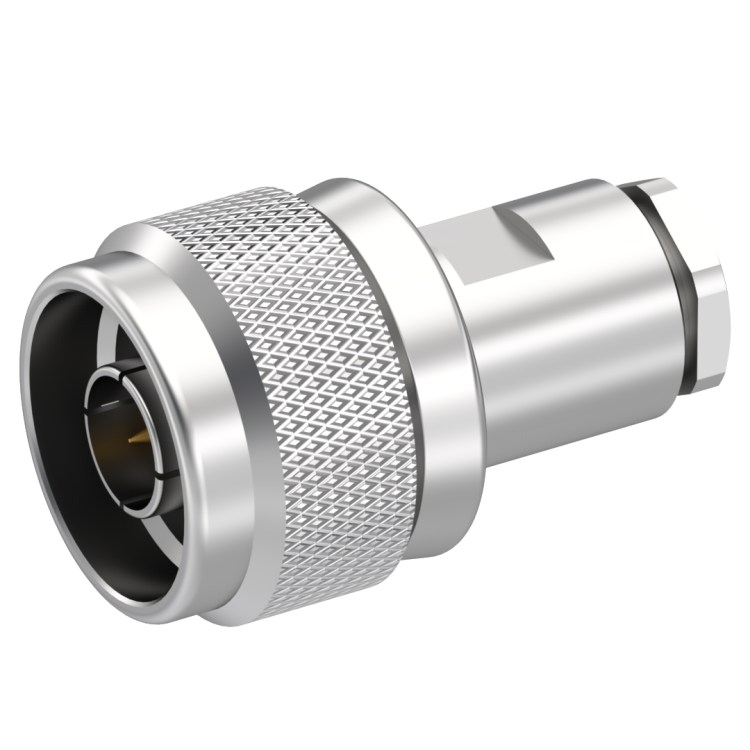

N / STRAIGHT PLUG CLAMP TYPE CABLE 10+11/50+75 S+D
R161022000 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R161022000
Brand RADIALL
Product Type Connectors
Interface I N
Model CABLE CONNECTOR
Max Frequency (GHz) 11
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type PLUG
Gender 1 MALE
Cable Standard KX 13, KX 4, KX 8, RG 11, RG 144, RG 165, RG 213, RG 214, RG 216, RG 225, RG 393
Cable Attachment CLAMP TYPE
Cable Groups 10/50 D, 10/50 S, 10/75 D, 10/75 S, 11/50 D, 11/50 S, 11/75 D, 11/75 S
Mating System SCREW-ON
Center Contact Plating GOLD 0.5 OVER NICKEL 2
Body Plating BBR
