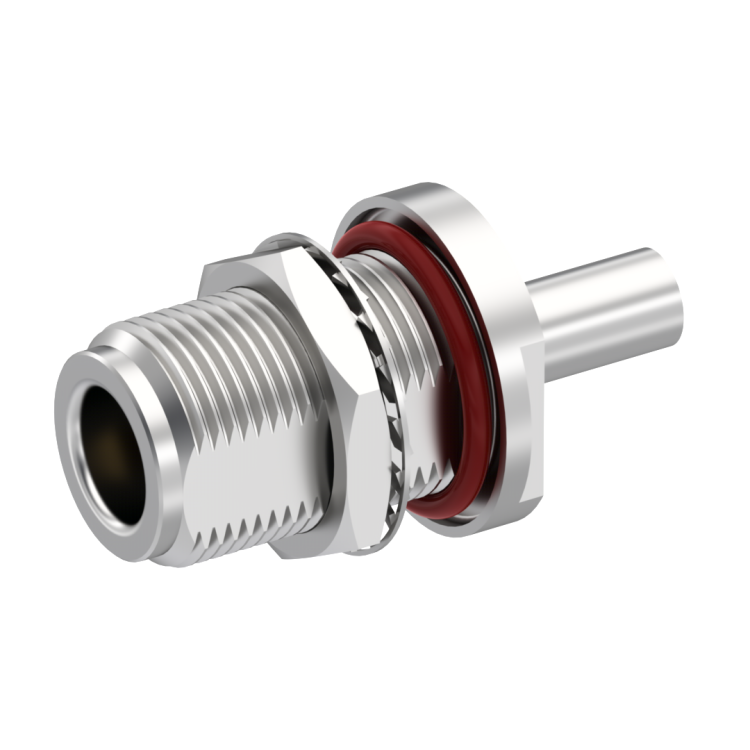

N / STRAIGHT BULKHEAD JACK PANEL SEAL FULL CRIMP-TYPE - CABLE 5/50 D

R161329200

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: CABLE CONNECTOR

Specific Feature: PANEL SEALED

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KX 23, RG 142, RG 223, RG 400

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 5/50 D

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: BBR

OR
N / STRAIGHT BULKHEAD JACK PANEL SEAL FULL CRIMP-TYPE - CABLE 5/50 D

R161329200 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
