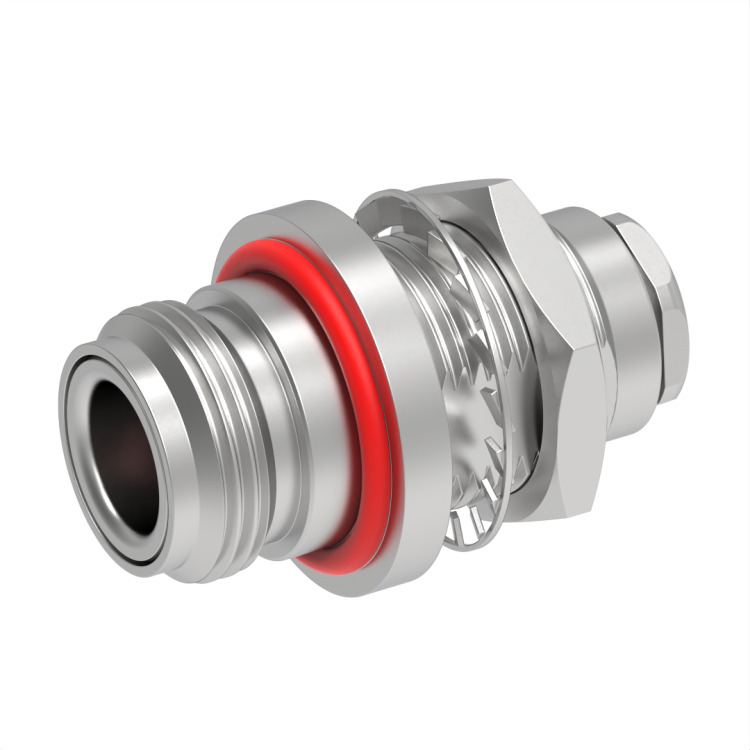

N / STRAIGHT BULKHEAD JACK PANEL SEAL CLAMP TYPE - CABLE .141

R161323000

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: CABLE CONNECTOR

Specific Feature: PANEL SEALED

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: BELDEN 1673A, HC80000-3, KS 2, RG 402, SUCOFORM 141

Cable Attachment: CLAMP TYPE

Cable Groups: .141''/50 SR

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: BBR

OR
N / STRAIGHT BULKHEAD JACK PANEL SEAL CLAMP TYPE - CABLE .141

R161323000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
