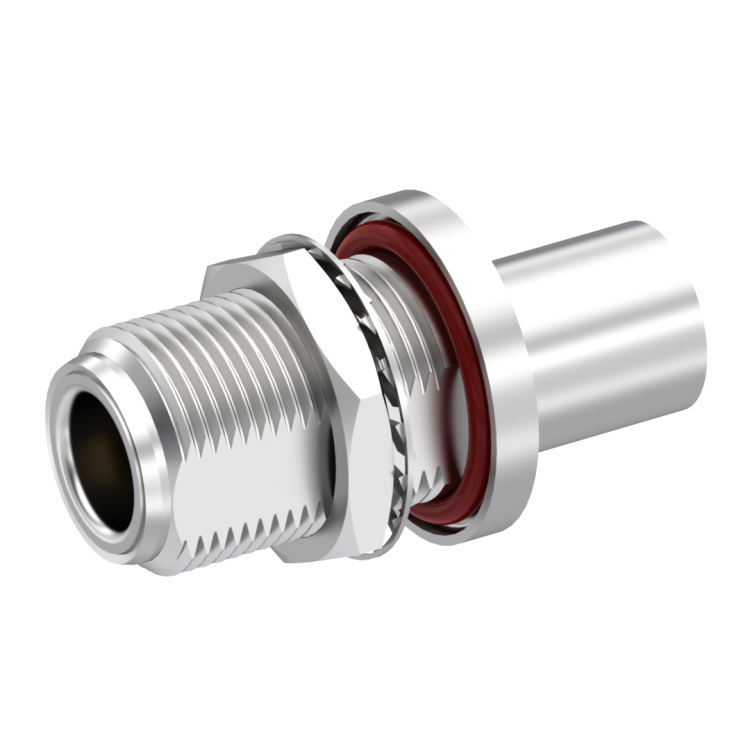

N / STRAIGHT BULKHEAD JACK FULL CRIMP-TYPE PANEL SEAL CABLE 11/75 D
R162339000 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
Click here to check for distribution inventory
R162339000
Brand RADIALL
Product Type Connectors
Interface I N
Model CABLE CONNECTOR
Specific Feature PANEL SEALED
Max Frequency (GHz) 1.5
Impedance (Ohm) 75
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard RG 216
Cable Attachment CRIMP TYPE, FULL CRIMP TYPE
Cable Groups 11/75 D
Mating System SCREW-ON
Center Contact Plating GOLD 0.5 OVER NICKEL 2
Body Plating BBR
