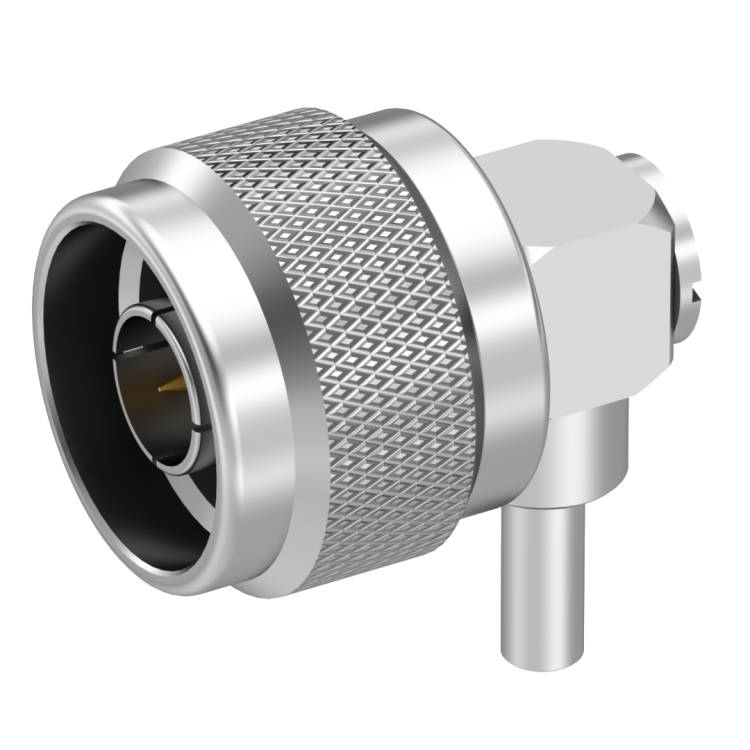

N / RIGHT ANGLE PLUG CRIMP TYPE CABLE 2.6/50 S

R161181000

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: CABLE CONNECTOR

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: RIGHT ANGLE

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KX 22A, RG 188, RG 316

Cable Attachment: CRIMP TYPE

Cable Groups: 2.6/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: BBR

This part is available on Amazon USA
Click here to check availability
OR
N / RIGHT ANGLE PLUG CRIMP TYPE CABLE 2.6/50 S

R161181000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
