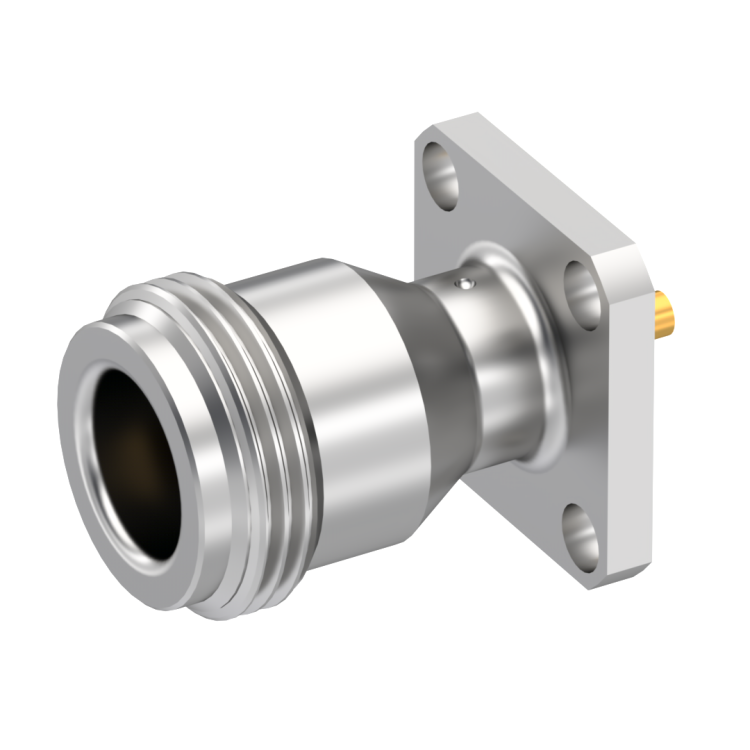

N / 3/4 INCH SQUARE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R161410037

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: PANEL RECEPTACLE

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: SOLDER POT

Center Contact Plating: GOLD 1.3 OVER COPPER 2.5

Body Plating: BBR

OR
N / 3/4 INCH SQUARE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R161410037 - Please contact Radiall for additional information
