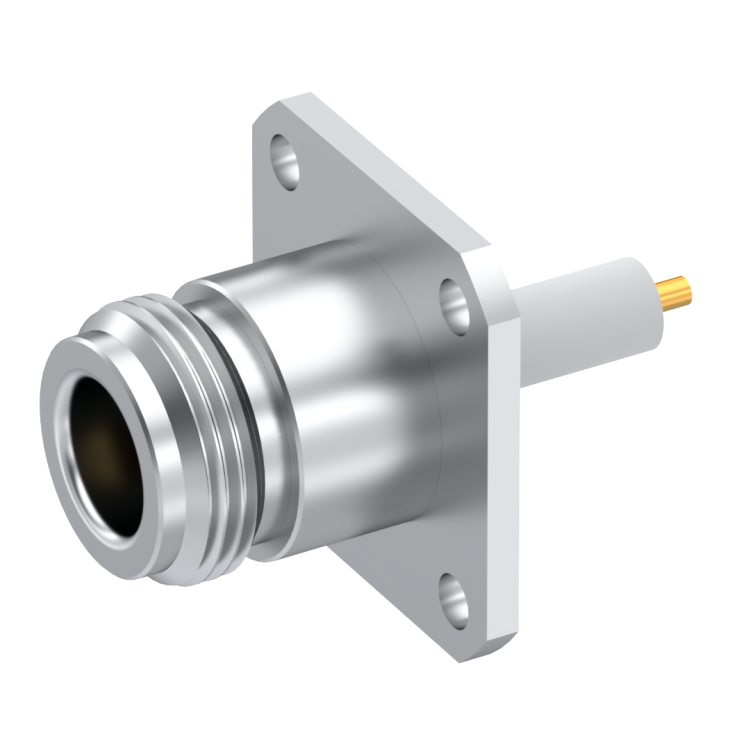

N 18 / SQUARE FLANGE JACK RECEPTACLE WITH CYLINDRICAL CONTACT

R163435071

Brand: RADIALL

Product Type: Connectors

Interface I: N 18

Model: PANEL RECEPTACLE

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: CYLINDRICAL

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: PASSIVATED

OR
N 18 / SQUARE FLANGE JACK RECEPTACLE WITH CYLINDRICAL CONTACT

R163435071 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
