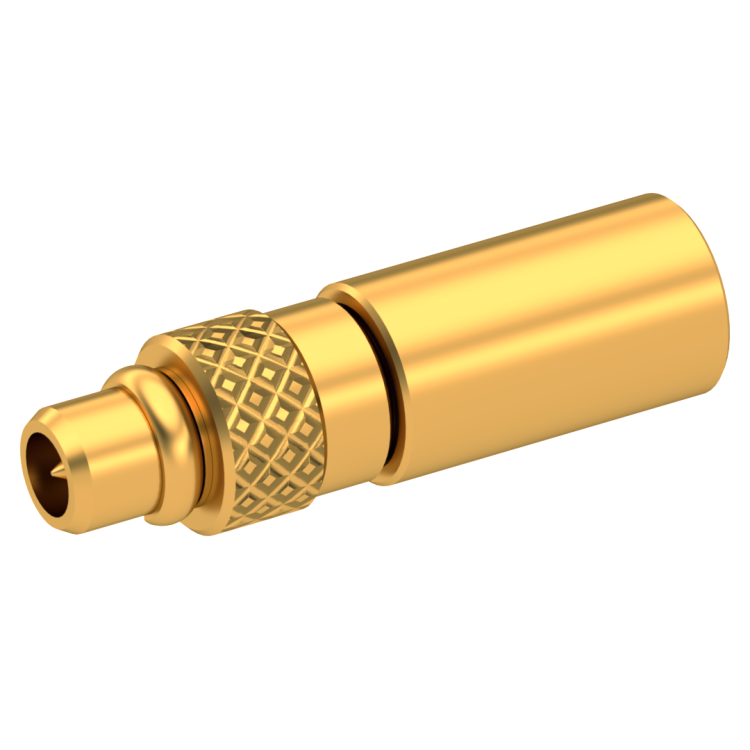

MMCX / STRAIGHT PLUG FULL CRIMP TYPE 2.6/50S
R110083120 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R110083120
Brand RADIALL
Product Type Connectors
Interface I MMCX
Model CABLE CONNECTOR
Max Frequency (GHz) 6
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type PLUG
Gender 1 MALE
Cable Standard KX 22A, RG 188, RG 316
Cable Attachment CRIMP TYPE, FULL CRIMP TYPE
Cable Groups 2.6/50 S
Mating System SNAP-ON
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating GOLD 0.2 OVER NICKEL 2
