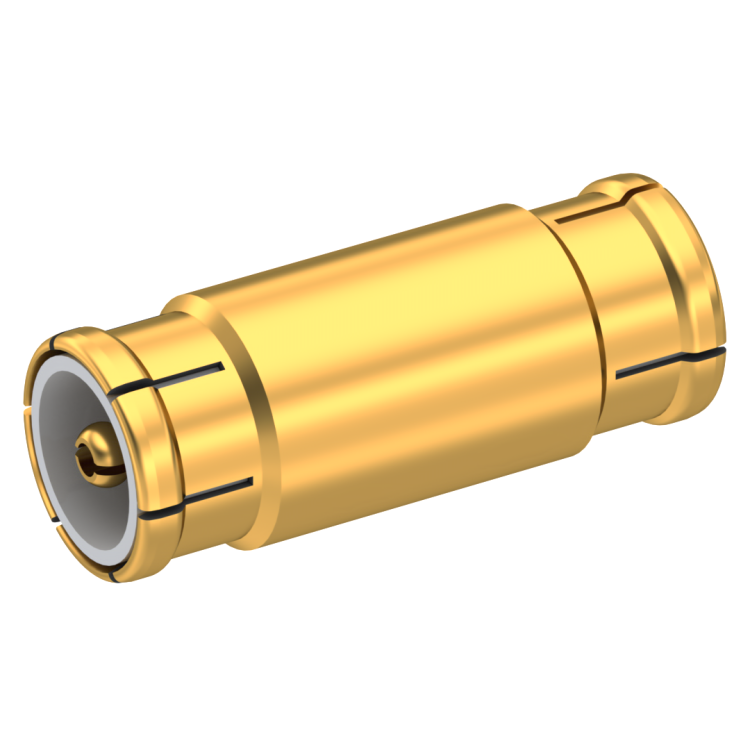

MMBX / MALE-MALE ADAPTER BOARD TO BOARD 11.7 MM

R223703020 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
3D.IGS
3D.STEP
MMBX / MALE-MALE ADAPTER BOARD TO BOARD 11.7 MM

R223703020

Brand RADIALL

Product Type Adapters

Interface I MMBX

Interface II MMBX

Max Frequency (GHz) 12.4

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG/PLUG

Gender 1 MALE

Gender 2 MALE

Mating System SLIDE-ON, SNAP-ON

Mating System 2 SLIDE-ON, SNAP-ON

Center Contact Plating NPGR

Body Plating NPGR
