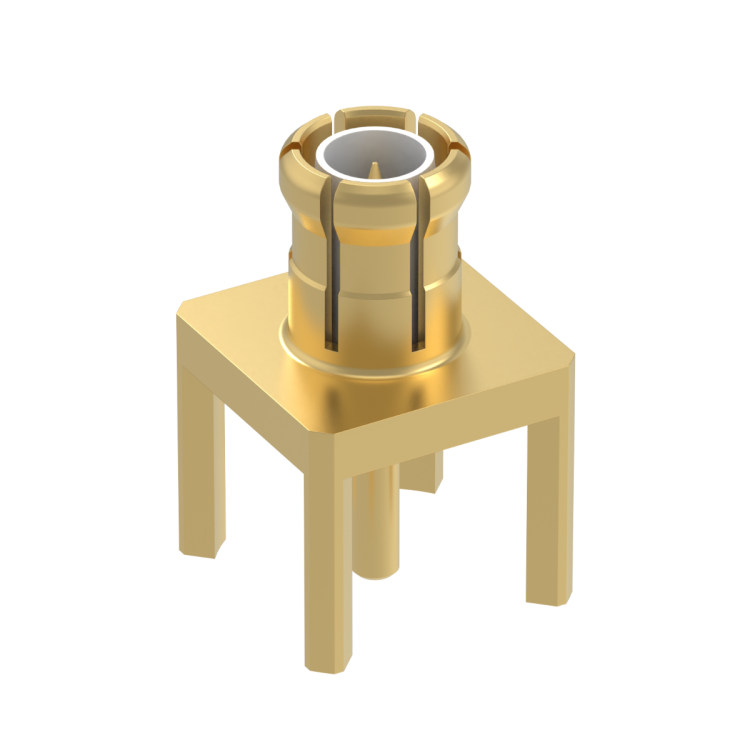

MCX / STRAIGHT PLUG RECEPTACLE FOR PCB SOLDER LEGS

R113425000

Brand: RADIALL

Product Type: Connectors

Interface I: MCX

Model: PCB RECEPTACLE

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: STRAIGHT

PCB Mounting: SOLDER LEGS

Connector Type: PLUG

Gender 1: MALE

Mating System: SNAP-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
MCX / STRAIGHT PLUG RECEPTACLE FOR PCB SOLDER LEGS

R113425000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
