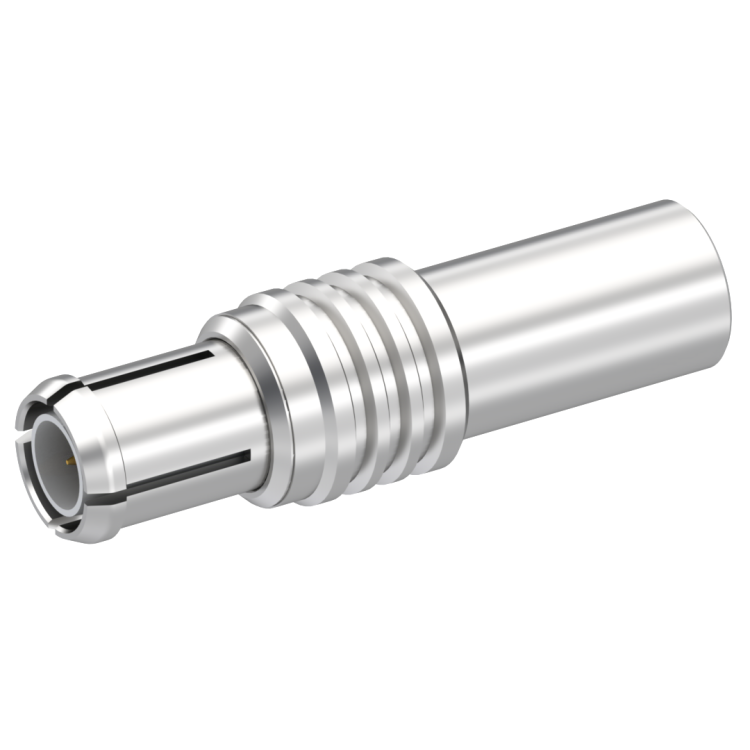

MCX / STRAIGHT PLUG CRIMP TYPE NON MAGNETIC FULL DETENT CABLE 2.6/50S

R299122097

Brand: RADIALL

Product Type: Connectors

Interface I: MCX

Model: CABLE CONNECTOR

Specific Feature: NON MAGNETIC

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: RG 316

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 2.6/50 S

Mating System: SNAP-ON

Center Contact Plating: GOLD OVER COPPER

Body Plating: BBR

OR
MCX / STRAIGHT PLUG CRIMP TYPE NON MAGNETIC FULL DETENT CABLE 2.6/50S

R299122097 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
