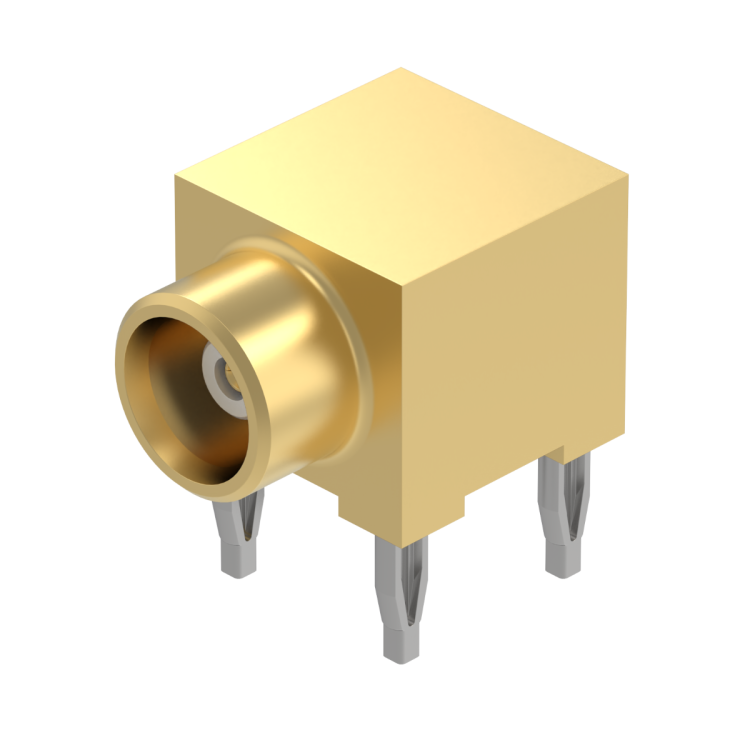

MCX / RIGHT ANGLE JACK RECEPTACLE FOR PCB PRESS-FIT LEGS

R113661000

Brand: RADIALL

Product Type: Connectors

Interface I: MCX

Model: PCB RECEPTACLE

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: RIGHT ANGLE

PCB Mounting: PRESS FIT

Connector Type: JACK

Gender 1: FEMALE

Mating System: SNAP-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
MCX / RIGHT ANGLE JACK RECEPTACLE FOR PCB PRESS-FIT LEGS

R113661000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
Cabling Instructions
3D.IGS
3D.STEP
