C / STRAIGHT FLANGE JACK CLAMP TYPE CABLE 5/50

R166256000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets

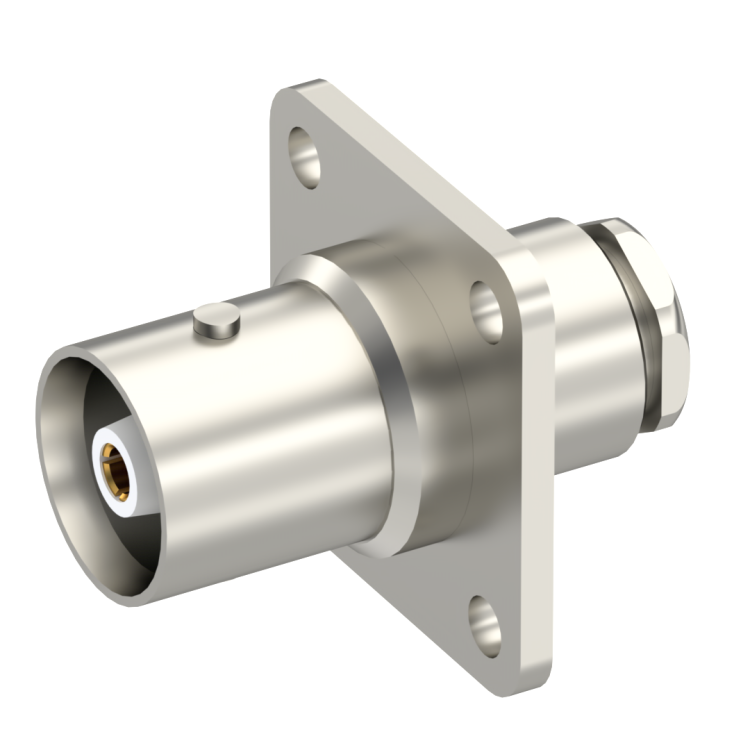

C / STRAIGHT FLANGE JACK CLAMP TYPE CABLE 5/50

R166256000

Brand RADIALL

Product Type Connectors

Interface I C

Model CABLE CONNECTOR

Max Frequency (GHz) 11

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK

Gender 1 FEMALE

Cable Standard KX 15, KX 23, RG 141, RG 142, RG 223, RG 400, RG 58

Cable Attachment CLAMP TYPE

Cable Groups 5/50 D, 5/50 S

Mating System BAYONET

Center Contact Plating GOLD 0.5 OVER NICKEL 2

Body Plating NICKEL 2
