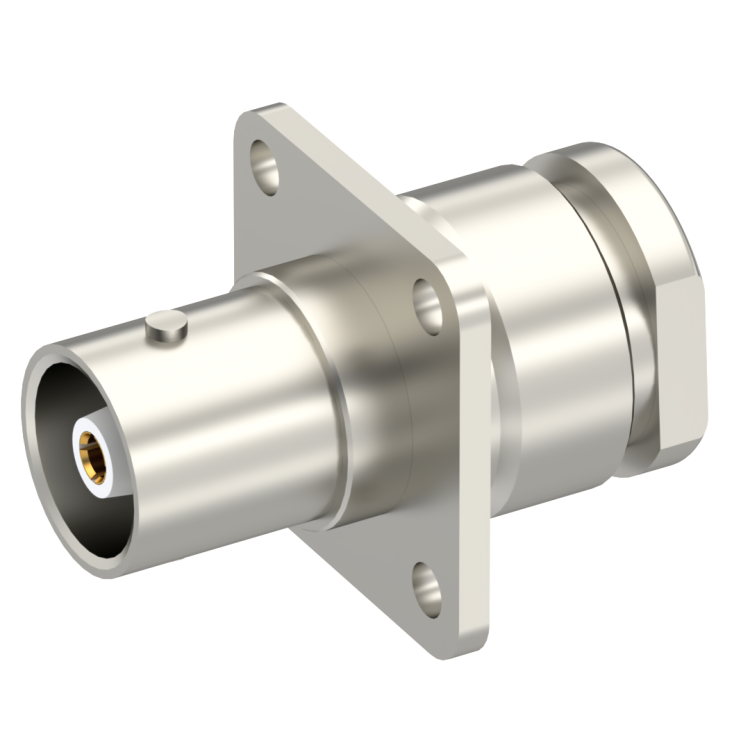

C / STRAIGHT FLANGE JACK CLAMP TYPE CABLE 10+11/50
R166268000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R166268000
Brand RADIALL
Product Type Connectors
Interface I C
Model CABLE CONNECTOR
Max Frequency (GHz) 11
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 13, KX 4, RG 165, RG 213, RG 214, RG 225
Cable Attachment CLAMP TYPE
Cable Groups 10/50 S, 11/50 D
Mating System BAYONET
Center Contact Plating GOLD 0.5 OVER NICKEL 2
Body Plating NICKEL 2
