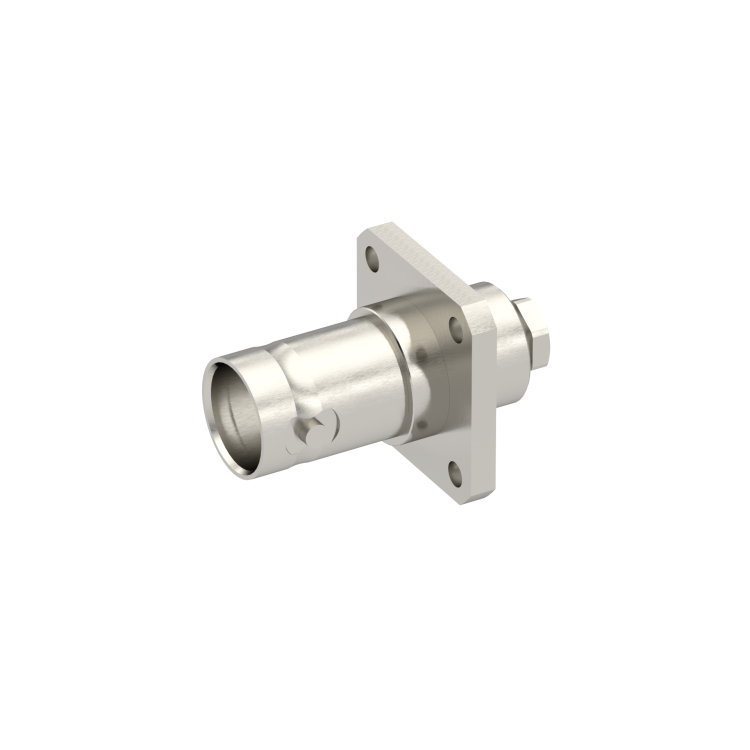

BNC / STRAIGHT SQUARE FLANGE JACK CLAMP TYPE - CABLE 2.6/75 S

R142202000

Brand: RADIALL

Product Type: Connectors

Interface I: BNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 1.5

Impedance (Ohm): 75

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: RG 179, RG 187

Cable Attachment: CLAMP TYPE

Cable Groups: 2.6/75 S

Mating System: BAYONET

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
BNC / STRAIGHT SQUARE FLANGE JACK CLAMP TYPE - CABLE 2.6/75 S

R142202000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
Cabling Instructions
3D.IGS
3D.STEP
