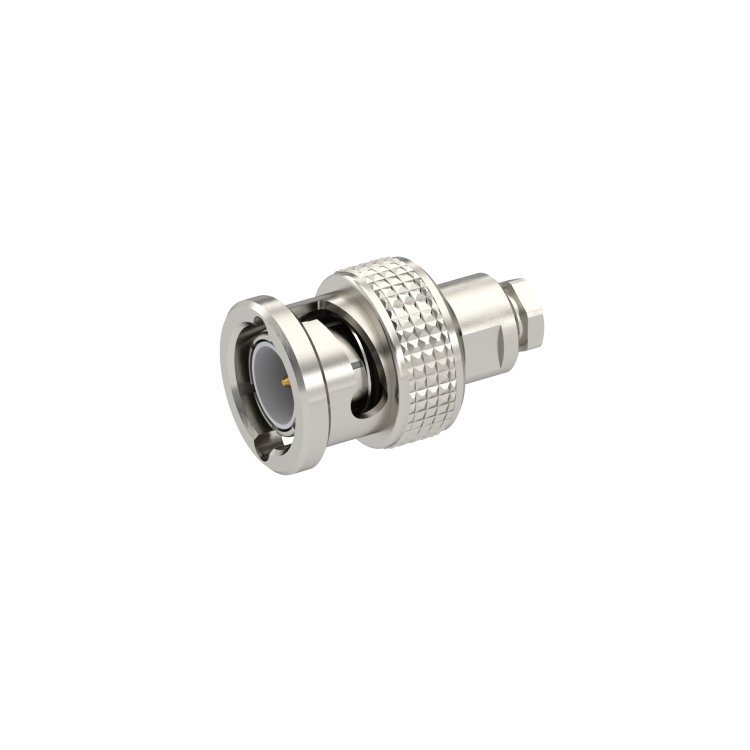

BNC / STRAIGHT PLUG CLAMP TYPE CABLE 2.6/75 S

R142004000

Brand: RADIALL

Product Type: Connectors

Interface I: BNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 1.5

Impedance (Ohm): 75

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: RG 179, RG 187

Cable Attachment: CLAMP TYPE

Cable Groups: 2.6/75 S

Mating System: BAYONET

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
BNC / STRAIGHT PLUG CLAMP TYPE CABLE 2.6/75 S

R142004000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
