BNC / STRAIGHT JACK FEMALE SOLDER CLAMP FOR .085''/50 SR NICKEL FRONT MOUNT|PANEL SEALED

6502-7041-010 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Cabling Instructions

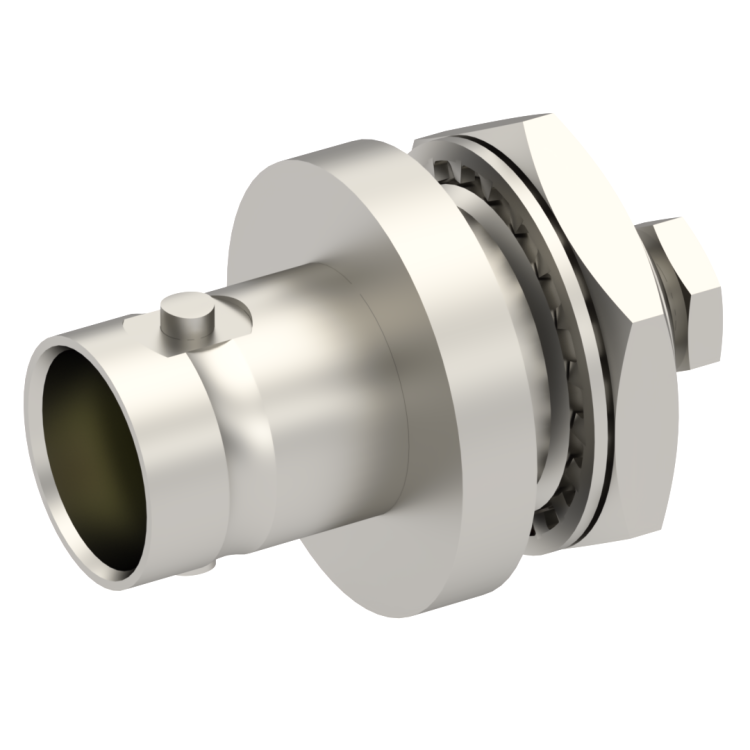

BNC / STRAIGHT JACK FEMALE SOLDER CLAMP FOR .085''/50 SR NICKEL FRONT MOUNT|PANEL SEALED

6502-7041-010

Brand AEP

Product Type Connectors

Interface I BNC

Model CABLE CONNECTOR

Specific Feature PANEL SEALED

Max Frequency (GHz) 4

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Cable Standard RG 405|M17/133

Cable Attachment SOLDER CLAMP

Cable Groups .085''/50 SR

Mating System BAYONET

Body Plating NICKEL
