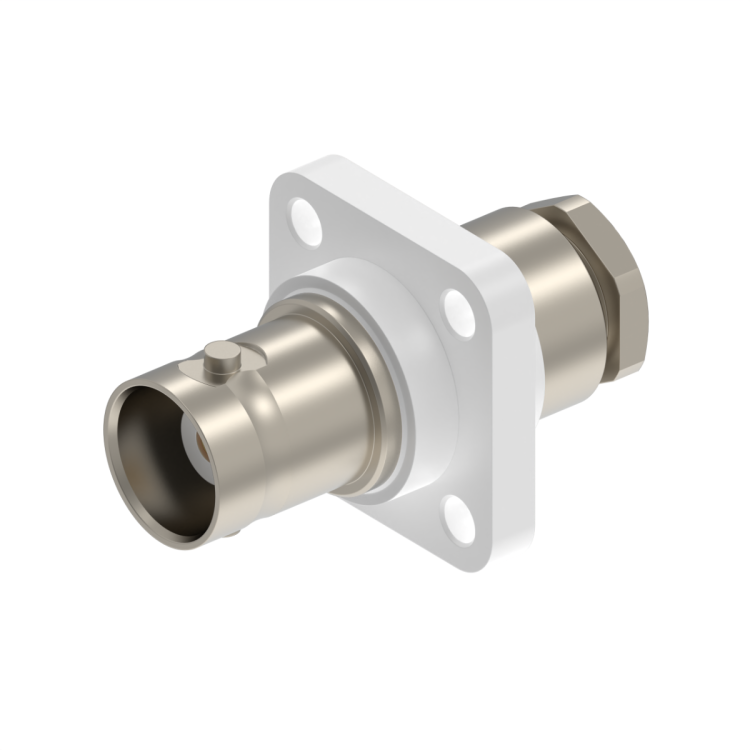

BNC / STRAIGHT INSULATED SQUARE FLANGE JACK CLAMP TYPE - CABLE 2.6/50+75
R141277000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R141277000
Brand RADIALL
Product Type Connectors
Interface I BNC
Model CABLE CONNECTOR
Specific Feature PANEL INSULATED
Max Frequency (GHz) 4
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 4 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 22A, RG 179, RG 187, RG 188, RG 316
Cable Attachment CLAMP TYPE
Cable Groups 2.6/50 S, 2.6/75 S
Mating System BAYONET
Center Contact Plating GOLD 0.5 OVER NICKEL 2
Body Plating NICKEL 2
