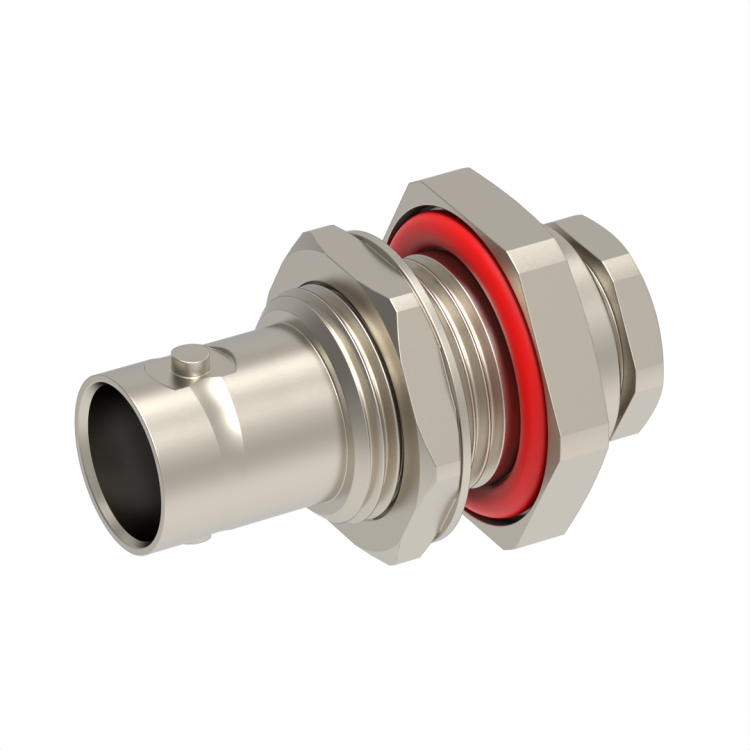

BNC / STRAIGHT BULKHEAD JACK PANEL SEAL REAR MOUNT CLAMP TYPE - CABLE 6/75+93
R141329000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R141329000
Brand RADIALL
Product Type Connectors
Interface I BNC
Model CABLE CONNECTOR
Specific Feature PANEL SEALED
Max Frequency (GHz) 4
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 6A, RG 59, RG 62
Cable Attachment CLAMP TYPE
Cable Groups 6/75 S, 6/93 S
Mating System BAYONET
Center Contact Plating GOLD 0.5 OVER NICKEL 2
Body Plating NICKEL 2
