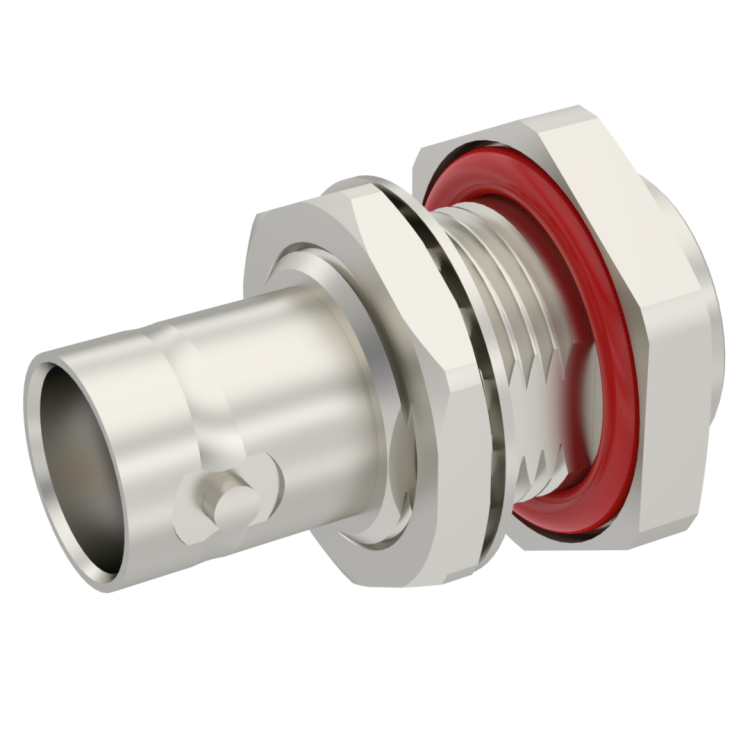

BNC / STRAIGHT BULKHEAD JACK PANEL SEAL REAR MOUNT CLAMP TYPE - CABLE 2/50 S
R141323000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
Click here to check for distribution inventory
R141323000
Brand RADIALL
Product Type Connectors
Interface I BNC
Model CABLE CONNECTOR
Specific Feature PANEL SEALED
Max Frequency (GHz) 4
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 21, RG 178, RG 196
Cable Attachment CLAMP TYPE
Cable Groups 2/50 S
Mating System BAYONET
Center Contact Plating GOLD 0.5 OVER NICKEL 2
Body Plating NICKEL 2
