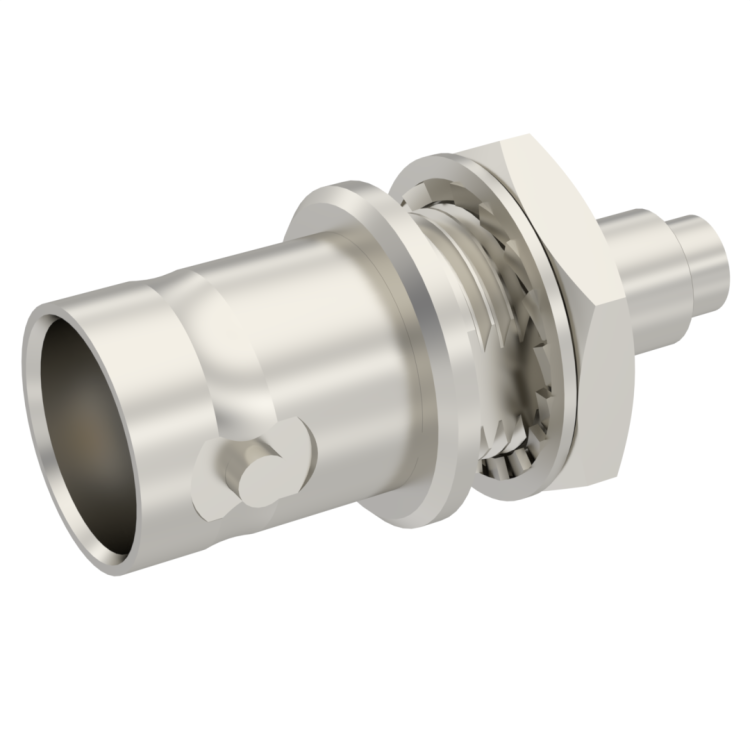

BNC / STRAIGHT BULKHEAD JACK FRONT MOUNT CRIMP TYPE - CABLE 2.6/75 S

R142306500

Brand: RADIALL

Product Type: Connectors

Interface I: BNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 1.5

Impedance (Ohm): 75

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: RG 179, RG 187

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 2.6/75 S

Mating System: BAYONET

Center Contact Plating: GOLD 0.2 OVER NICKEL 2

Body Plating: NICKEL 2

OR
BNC / STRAIGHT BULKHEAD JACK FRONT MOUNT CRIMP TYPE - CABLE 2.6/75 S

R142306500 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
