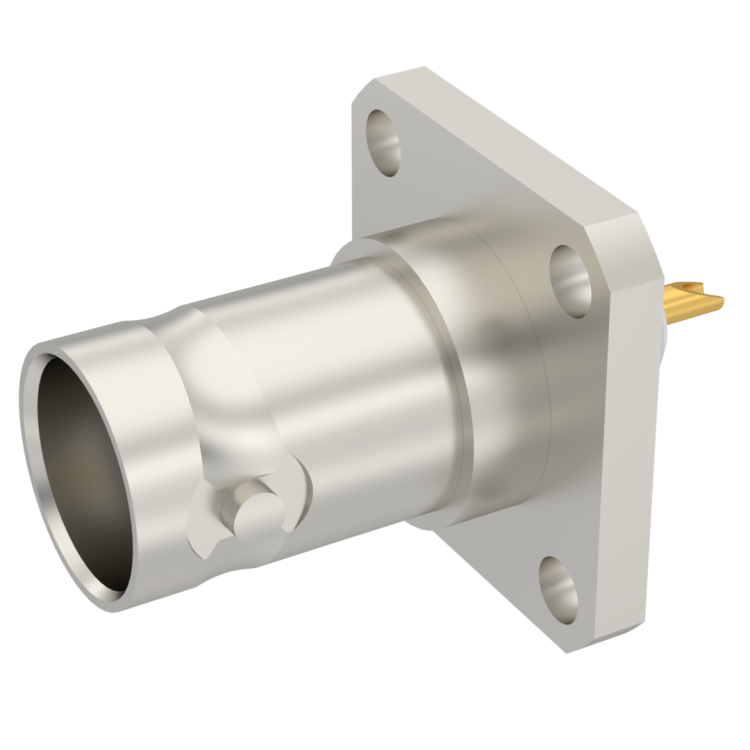

BNC / SQUARE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R142407000

Brand: RADIALL

Product Type: Connectors

Interface I: BNC

Model: PANEL RECEPTACLE

Max Frequency (GHz): 1.5

Impedance (Ohm): 75

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: BAYONET

Center Contact Termination: SOLDER POT

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
BNC / SQUARE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R142407000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
