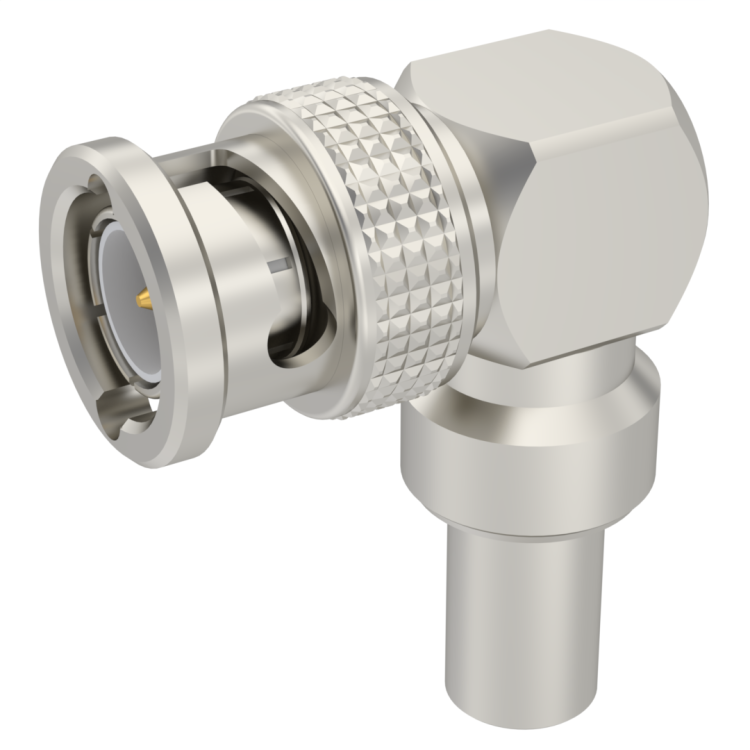

BNC / RIGHT ANGLE PLUG CRIMP TYPE CABLE 6/75+93

R142184000

Brand: RADIALL

Product Type: Connectors

Interface I: BNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 1.5

Impedance (Ohm): 75

Geometry: RIGHT ANGLE

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KX 6A, RG 59

Cable Attachment: CRIMP TYPE

Cable Groups: 6/75 S

Mating System: BAYONET

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

Click here to check availability
OR
BNC / RIGHT ANGLE PLUG CRIMP TYPE CABLE 6/75+93

R142184000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
