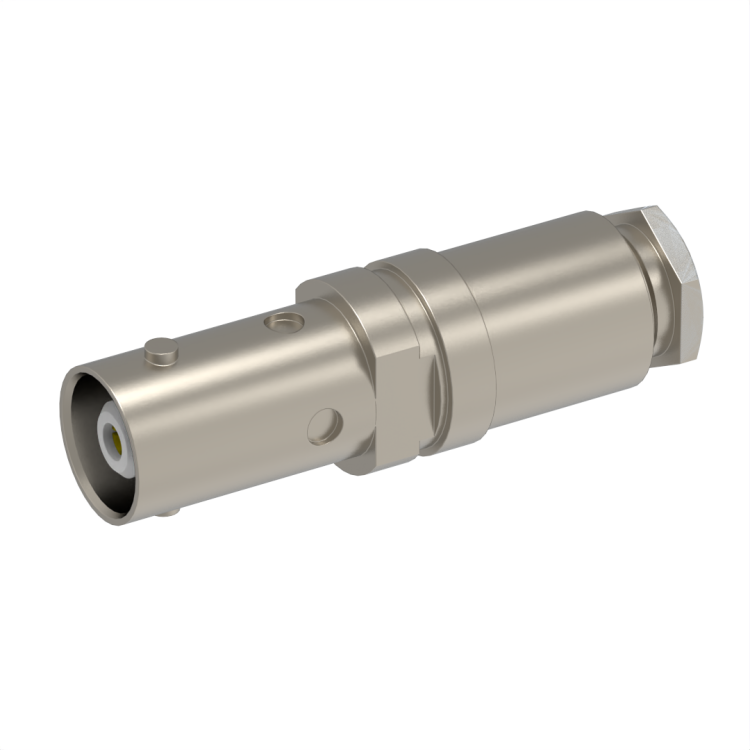

BNC HT-MHV / STRAIGHT JACK CLAMP TYPE CABLE 5/50S
R316207000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R316207000
Brand RADIALL
Product Type Connectors
Interface I BNC HT-MHV
Model CABLE CONNECTOR
Specific Feature HIGH VOLTAGE
Max Frequency (GHz) 2
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 15, KX 23, RG 141, RG 142, RG 223, RG 400, RG 58
Cable Attachment CLAMP TYPE
Cable Groups 5/50 D, 5/50 S
Mating System BAYONET
Center Contact Plating SILVER
Body Plating NICKEL
