BNC / BULKHEAD HERMETIC JACK RECEPTACLE FRONT MOUNTING PANEL SEAL

R141625000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Click here to check for distribution inventory

Datasheets Download
Datasheets
3D.IGS

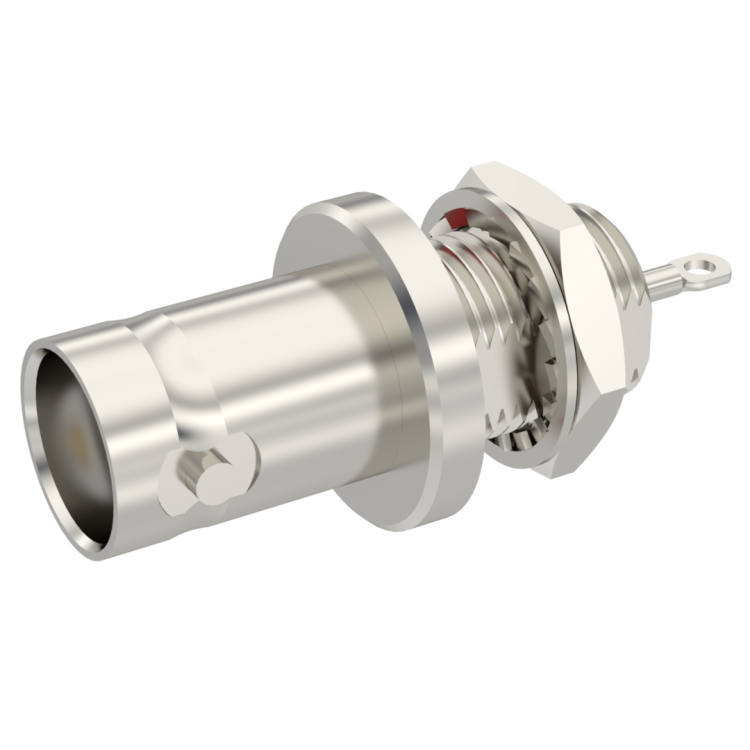

BNC / BULKHEAD HERMETIC JACK RECEPTACLE FRONT MOUNTING PANEL SEAL

R141625000

Brand RADIALL

Product Type Connectors

Interface I BNC

Model PANEL RECEPTACLE

Specific Feature GLASS SEAL, HERMETIC

Max Frequency (GHz) 4

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Mating System BAYONET

Center Contact Termination SOLDER POT

Center Contact Plating GOLD 0.5 OVER NICKEL 2

Body Plating NICKEL 2
