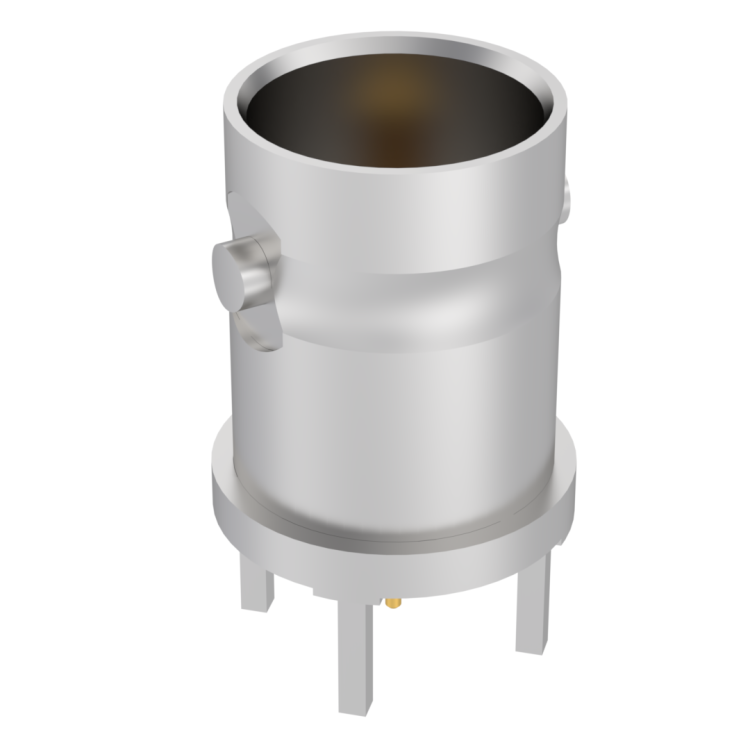

BNC 75 HDTV / STRAIGHT JACK RECEPTACLE FOR PCB SOLDER LEGS

R142500730

Brand: RADIALL

Product Type: Connectors

Interface I: BNC

Model: PCB RECEPTACLE

Specific Feature: HDTV

Max Frequency (GHz): 6

Impedance (Ohm): 75

Geometry: STRAIGHT

PCB Mounting: SOLDER LEGS

Connector Type: JACK

Gender 1: FEMALE

Mating System: BAYONET

Center Contact Plating: NPGR

Body Plating: BBR

OR
BNC 75 HDTV / STRAIGHT JACK RECEPTACLE FOR PCB SOLDER LEGS

R142500730 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
3D.IGS
3D.STEP
