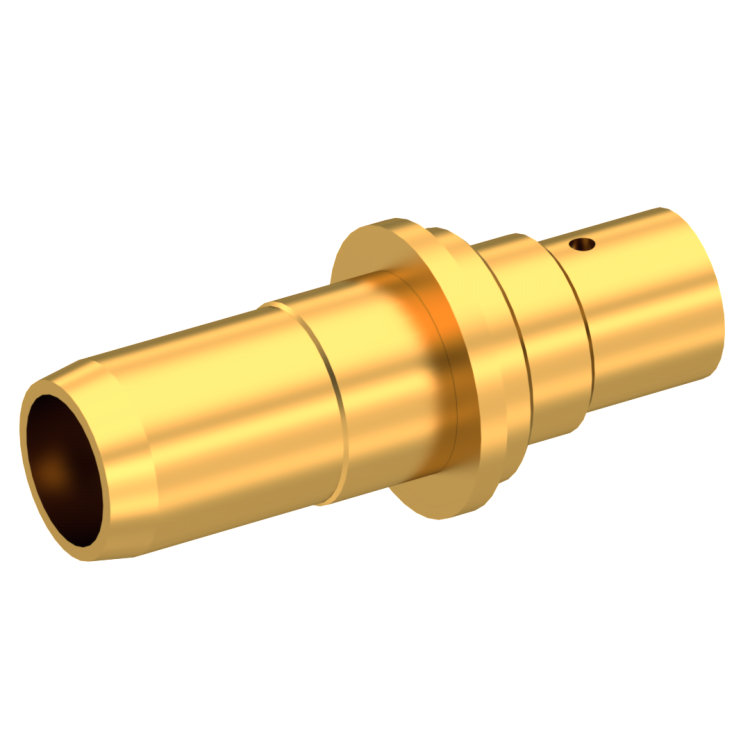

BMA / STRAIGHT SIZE 8 PIN CONTACT FOR 38999 SOLDER TYPE CABLE .141

R128056000

Brand: RADIALL

Product Type: Connectors

Interface I: BMA

Model: CABLE CONNECTOR

Specific Feature: COAXIAL CONTACT

Max Frequency (GHz): 22

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: SPECIAL MOUNT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KS 2, RG 402

Cable Attachment: SOLDER TYPE

Cable Groups: .141''/50 SR

Mating System: SLIDE-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.5 OVER NICKEL 2

OR
BMA / STRAIGHT SIZE 8 PIN CONTACT FOR 38999 SOLDER TYPE CABLE .141

R128056000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
