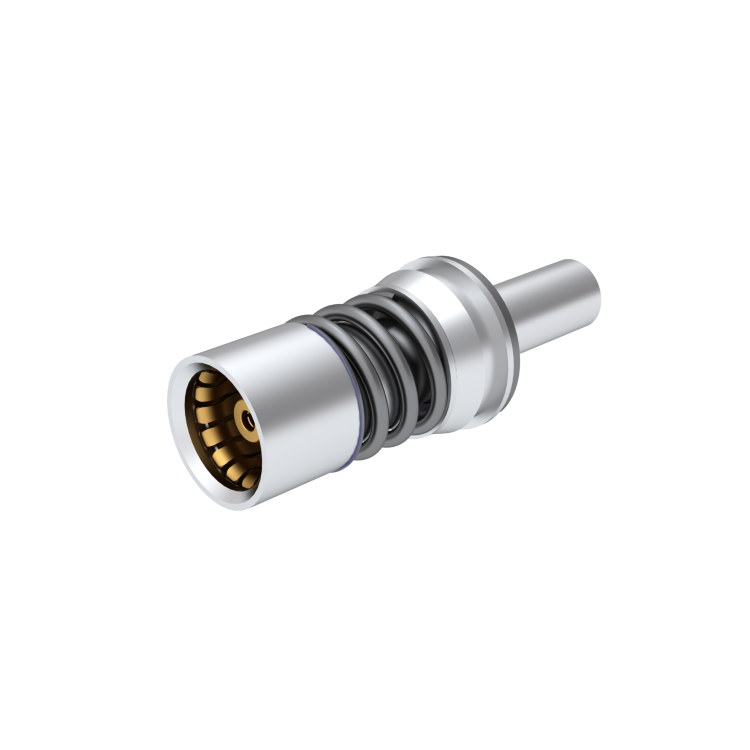

BMA / STRAIGHT FLOATING JACK CLIP-ON CRIMP TYPE CABLE 2.6/50 S

R128233701

Brand: RADIALL

Product Type: Connectors

Interface I: BMA

Model: CABLE CONNECTOR

Specific Feature: FLOAT MOUNT

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: SNAP-IN

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KX 22A, RG 188, RG 316

Cable Attachment: CRIMP TYPE

Cable Groups: 2.6/50 S

Mating System: SLIDE-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: PASSIVATED

OR
BMA / STRAIGHT FLOATING JACK CLIP-ON CRIMP TYPE CABLE 2.6/50 S

R128233701 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Cabling Instructions
3D.IGS
3D.STEP
