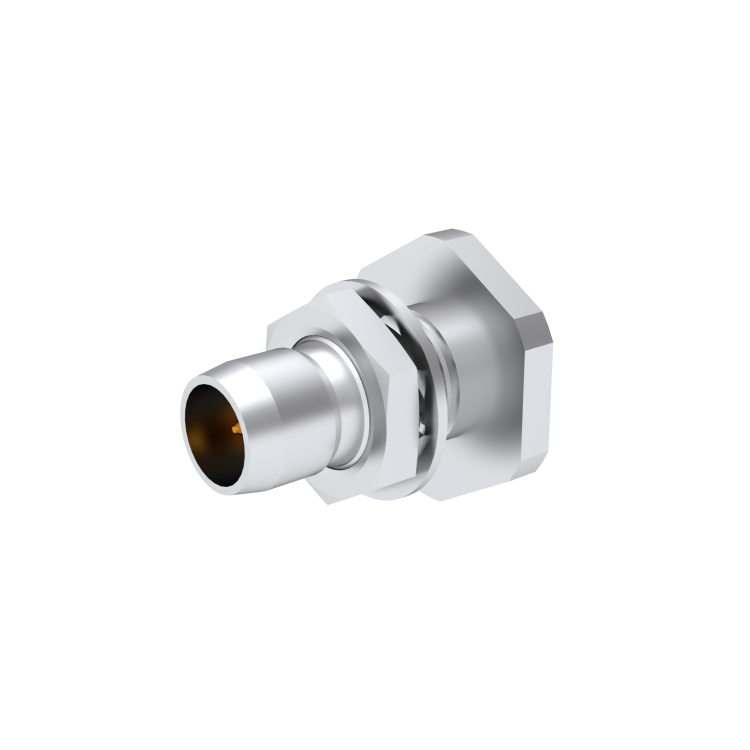

BMA / STRAIGHT BULKHEAD PLUG SOLDER TYPE CABLE .141

R128055827

Brand: RADIALL

Product Type: Connectors

Interface I: BMA

Model: CABLE CONNECTOR

Max Frequency (GHz): 22

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KS 2, RG 402

Cable Attachment: SOLDER TYPE

Cable Groups: .141''/50 SR

Mating System: SLIDE-ON

Center Contact Plating: GOLD 1.3 OVER COPPER 2

Body Plating: BBR

OR
BMA / STRAIGHT BULKHEAD PLUG SOLDER TYPE CABLE .141

R128055827 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
