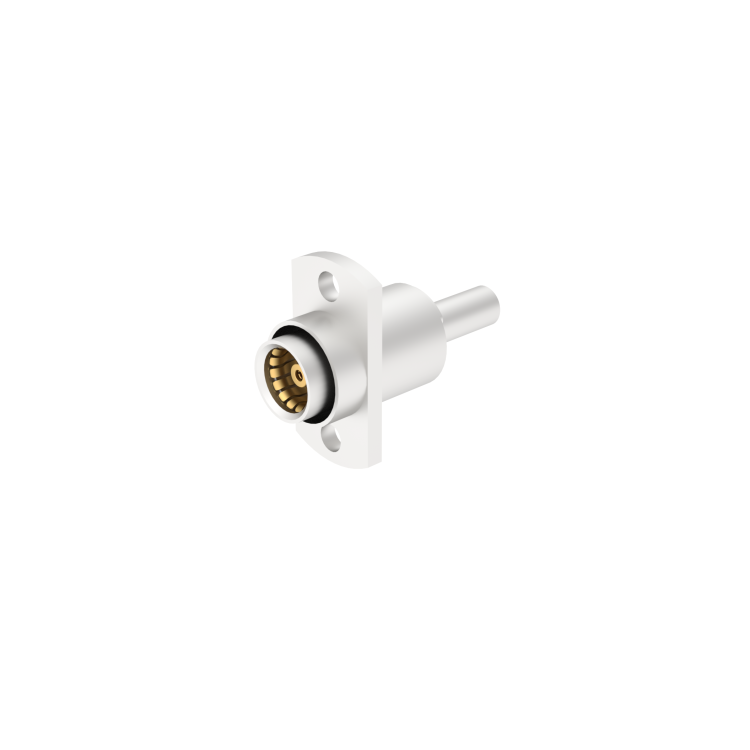

BMA / STRAIGHT 2 HOLE FLANGE FLOATING JACK CRIMP TYPE - CABLE 2.6/50 S

R128263707

Brand: RADIALL

Product Type: Connectors

Interface I: BMA

Model: CABLE CONNECTOR

Specific Feature: FLOAT MOUNT

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 2 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KX 22A, RG 188, RG 316

Cable Attachment: CRIMP TYPE

Cable Groups: 2.6/50 S

Mating System: SLIDE-ON

Center Contact Plating: NPGR

Body Plating: BBR

OR
BMA / STRAIGHT 2 HOLE FLANGE FLOATING JACK CRIMP TYPE - CABLE 2.6/50 S

R128263707 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
Cabling Instructions
3D.IGS
3D.STEP
