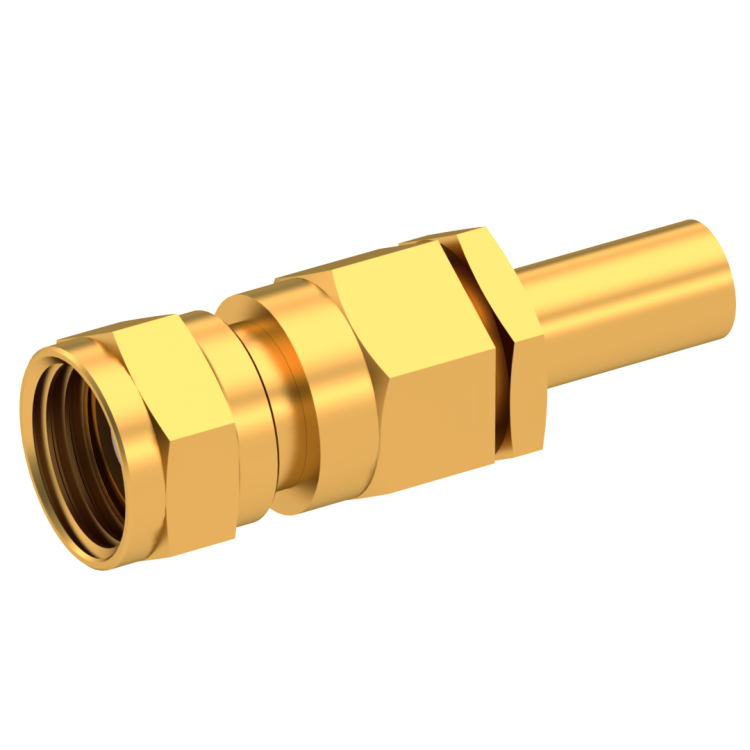

75 OHM / STRAIGHT PLUG FEMALE CRIMP TYPE FOR 3.8/95 S GOLD

1702-1571-004 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions
75 OHM / STRAIGHT PLUG FEMALE CRIMP TYPE FOR 3.8/95 S GOLD

1702-1571-004

Brand AEP

Product Type Connectors

Interface I 75 OHM

Model CABLE CONNECTOR

Max Frequency (GHz) 2

Impedance (Ohm) 75

Geometry STRAIGHT

Connector Type PLUG

Gender 1 FEMALE

Cable Standard RG 180|RG 195|M17/95

Cable Attachment CRIMP TYPE

Cable Groups 3.8/95 S

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
