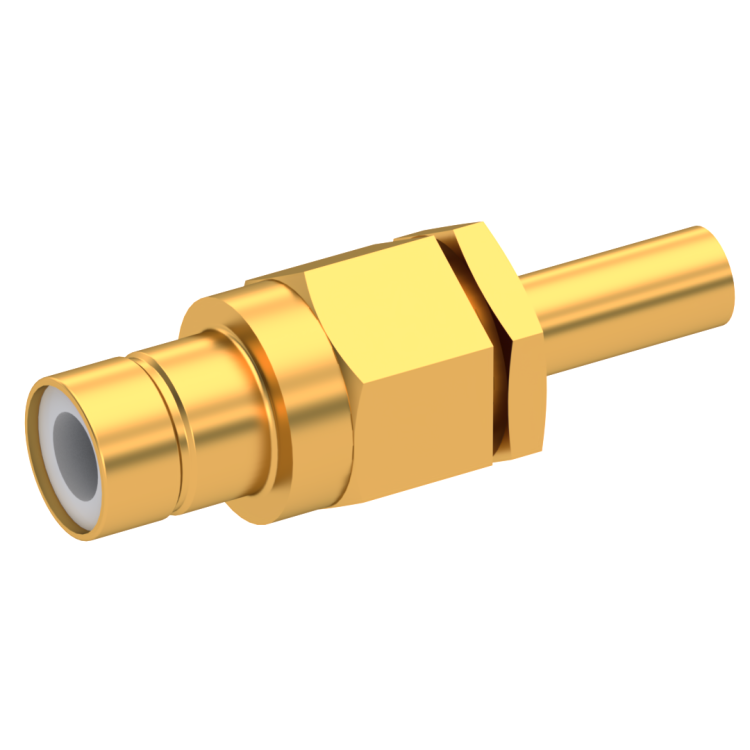

75 OHM / STRAIGHT JACK MALE CRIMP TYPE FOR 6/75 S GOLD

2701-1571-007

Brand: AEP

Product Type: Connectors

Interface I: 75 OHM

Model: CABLE CONNECTOR

Max Frequency (GHz): 2

Impedance (Ohm): 75

Geometry: STRAIGHT

Connector Type: JACK

Gender 1: MALE

Cable Standard: KX 6A, M17/29|M17/30, RG 59, RG 62

Cable Attachment: CRIMP TYPE

Cable Groups: 6/75 S

Mating System: SNAP-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
75 OHM / STRAIGHT JACK MALE CRIMP TYPE FOR 6/75 S GOLD

2701-1571-007 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
