75 OHM / STRAIGHT JACK MALE CRIMP TYPE FOR 3.8/95 S NICKEL

2701-7571-004 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

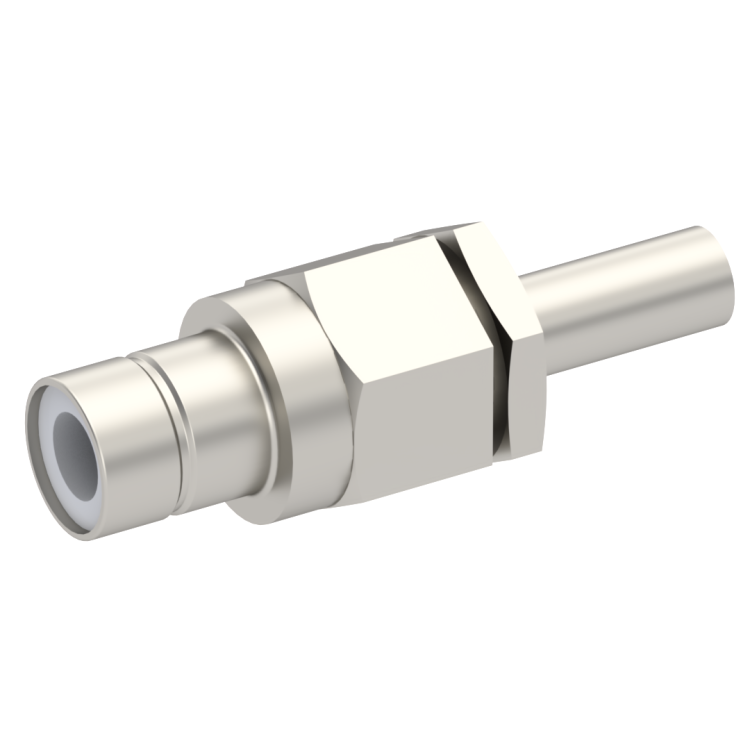

75 OHM / STRAIGHT JACK MALE CRIMP TYPE FOR 3.8/95 S NICKEL

2701-7571-004

Brand AEP

Product Type Connectors

Interface I 75 OHM

Model CABLE CONNECTOR

Max Frequency (GHz) 2

Impedance (Ohm) 75

Geometry STRAIGHT

Connector Type JACK

Gender 1 MALE

Cable Standard RG 180|RG 195|M17/95

Cable Attachment CRIMP TYPE

Cable Groups 3.8/95 S

Mating System SNAP-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating NICKEL
