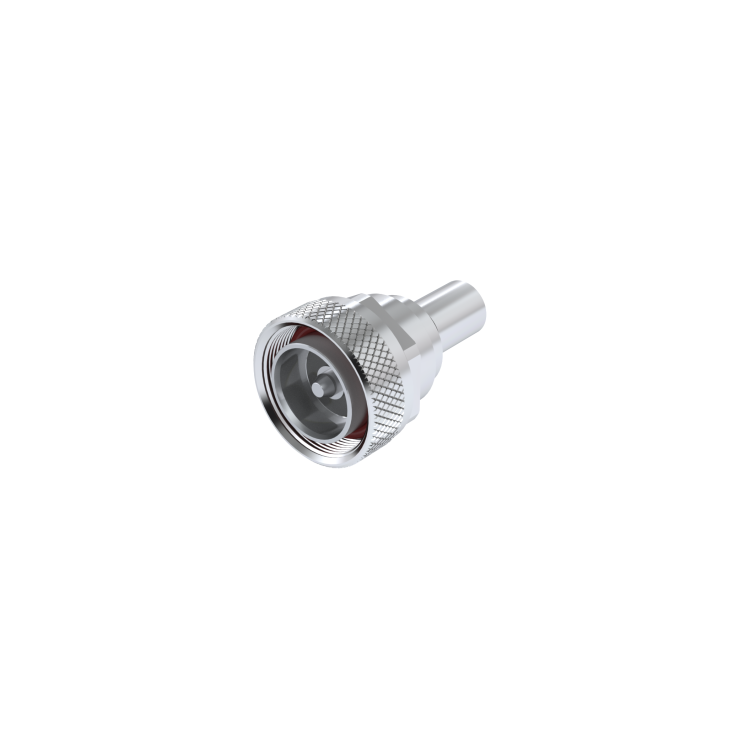

7-16 / STRAIGHT PLUG CRIMP TYPE CABLE 10/50 S

R185074000

Brand: RADIALL

Product Type: Connectors

Interface I: 7-16

Model: CABLE CONNECTOR

Max Frequency (GHz): 7.5

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KX 13, KX 4, RG 165, RG 213, RG 214, RG 225

Cable Attachment: CRIMP TYPE

Cable Groups: 10/50 S, 11/50 D

Mating System: SCREW-ON

Center Contact Plating: SILVER 5 OVER COPPER 0.5

Body Plating: BBR 0.5 OVER SILVER 3

OR
7-16 / STRAIGHT PLUG CRIMP TYPE CABLE 10/50 S

R185074000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
Cabling Instructions
3D.IGS
