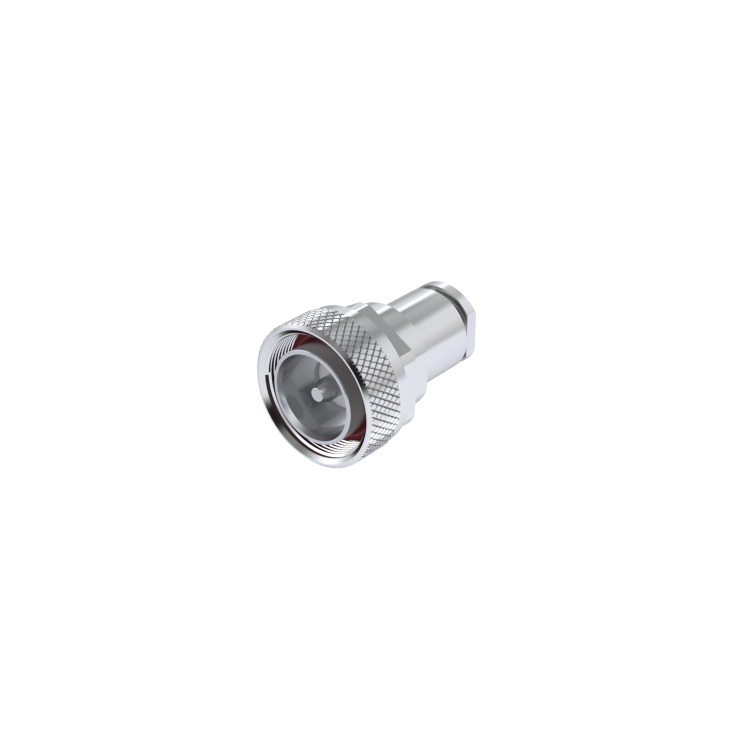

7-16 / STRAIGHT PLUG CLAMP TYPE CABLE 10 +11/50
R185010000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
Click here to check for distribution inventory
R185010000
Brand RADIALL
Product Type Connectors
Interface I 7-16
Model CABLE CONNECTOR
Max Frequency (GHz) 7.5
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type PLUG
Gender 1 MALE
Cable Standard KX 13, KX 4, RG 213, RG 214, RG 225, RG 393
Cable Attachment CLAMP TYPE
Cable Groups 10/50 D, 10/50 S, 11/50 D, 11/50 S
Mating System SCREW-ON
Center Contact Plating SILVER 5 OVER COPPER 0.5
Body Plating BBR 0.5 OVER SILVER 3
