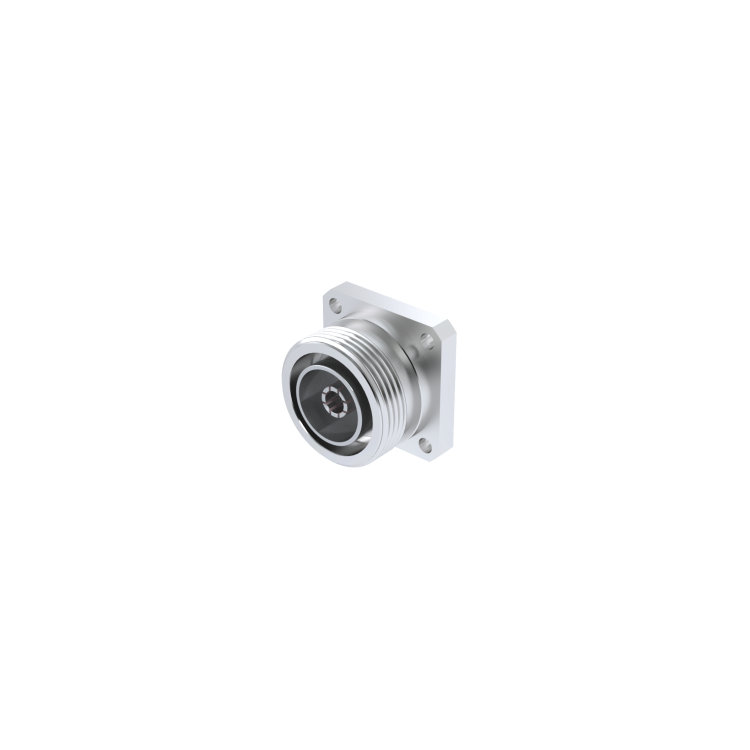

7-16 / SQUARE FLANGE RECEPTACLE M3 REAR MOUNTING

R185406090

Brand: RADIALL

Product Type: Connectors

Interface I: 7-16

Model: PANEL RECEPTACLE

Max Frequency (GHz): 7.5

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: THREADED

Center Contact Plating: SILVER 5 PASSIVATED OVER COPPER 0.5

Body Plating: BBR 0.5 OVER SILVER 3

OR
7-16 / SQUARE FLANGE RECEPTACLE M3 REAR MOUNTING

R185406090 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
