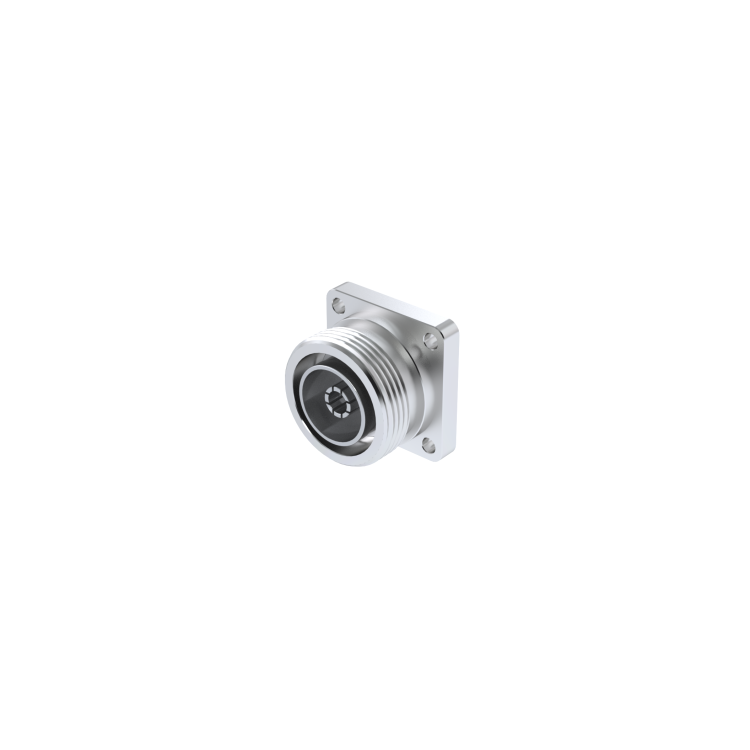

7-16 / SQUARE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R185403547

Brand: RADIALL

Product Type: Connectors

Interface I: 7-16

Model: PANEL RECEPTACLE

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: SOLDER POT

Center Contact Plating: SILVER 5 OVER COPPER 0.5

Body Plating: BBR

OR
7-16 / SQUARE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R185403547 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
