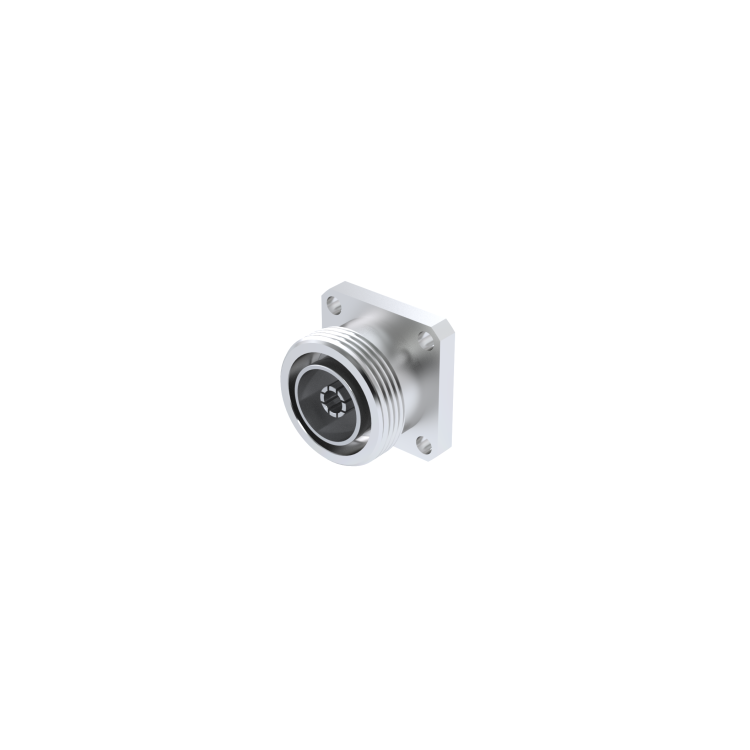

7-16 / SQUARE FLANGE JACK RECEPTACLE PANEL SEAL - SPECIAL CONTACT

R185404300

Brand: RADIALL

Product Type: Connectors

Interface I: 7-16

Model: PANEL RECEPTACLE

Specific Feature: PANEL SEALED

Max Frequency (GHz): 7.5

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: OTHER

Center Contact Plating: SILVER 5 OVER COPPER 0.5

Body Plating: SILVER 5 PASSIVATED OVER COPPER 0.5

OR
7-16 / SQUARE FLANGE JACK RECEPTACLE PANEL SEAL - SPECIAL CONTACT

R185404300 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
