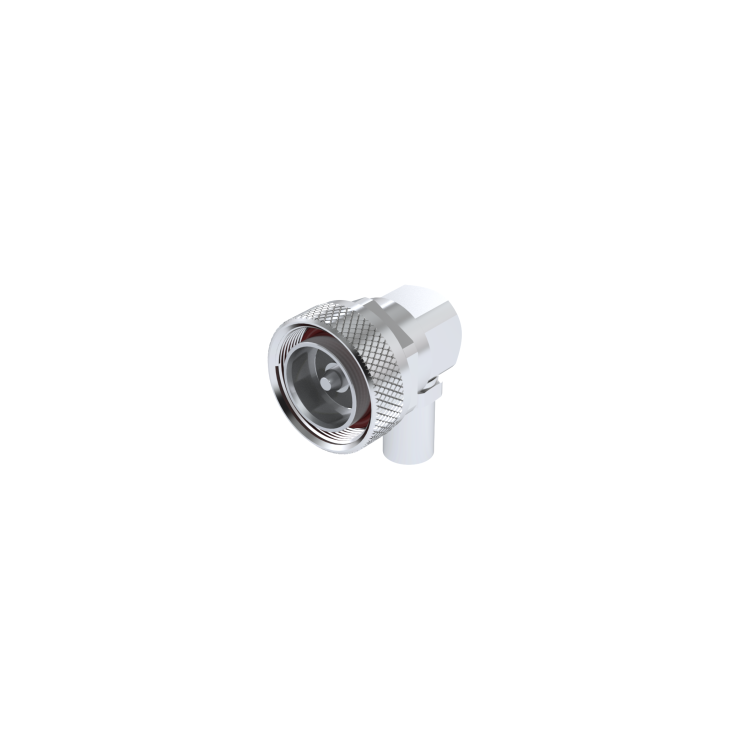

7-16 / RIGHT ANGLE PLUG CRIMP TYPE CABLE 10/50 S

R185174000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
3D.IGS
7-16 / RIGHT ANGLE PLUG CRIMP TYPE CABLE 10/50 S

R185174000

Brand RADIALL

Product Type Connectors

Interface I 7-16

Model CABLE CONNECTOR

Max Frequency (GHz) 7.5

Impedance (Ohm) 50

Geometry RIGHT ANGLE

Connector Type PLUG

Gender 1 MALE

Cable Standard KX 4, RG 165, RG 213

Cable Attachment CRIMP TYPE

Cable Groups 10/50 S

Mating System SCREW-ON

Center Contact Plating SILVER 5 OVER COPPER 0.5

Body Plating BBR 0.5 OVER SILVER 3
