7-16 / COMPOSITE SQUARE FLANGE JACK RECEPTACLE PANEL SEAL - FRONT MOUNTING M3 SCREW

R187406100 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
3D.IGS

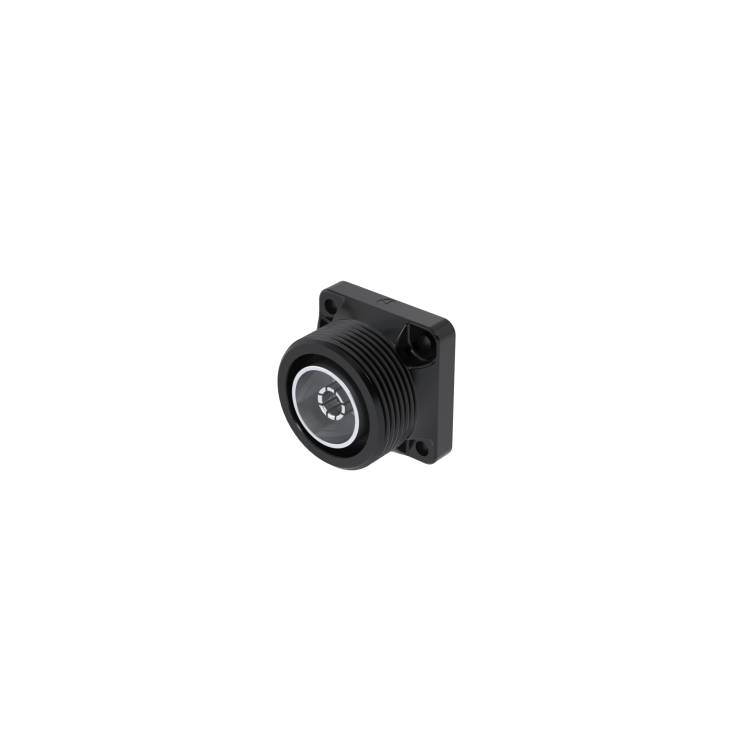

7-16 / COMPOSITE SQUARE FLANGE JACK RECEPTACLE PANEL SEAL - FRONT MOUNTING M3 SCREW

R187406100

Brand RADIALL

Product Type Connectors

Interface I 7-16

Model PANEL RECEPTACLE

Specific Feature PANEL SEALED, WATERPROOF

Max Frequency (GHz) 7.5

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting 4 HOLE FLANGE

Connector Type JACK

Gender 1 FEMALE

Mating System SCREW-ON

Center Contact Termination SOLDER POT

Center Contact Plating SILVER 5 OVER COPPER 0.5

Body Plating COMPOSITE
