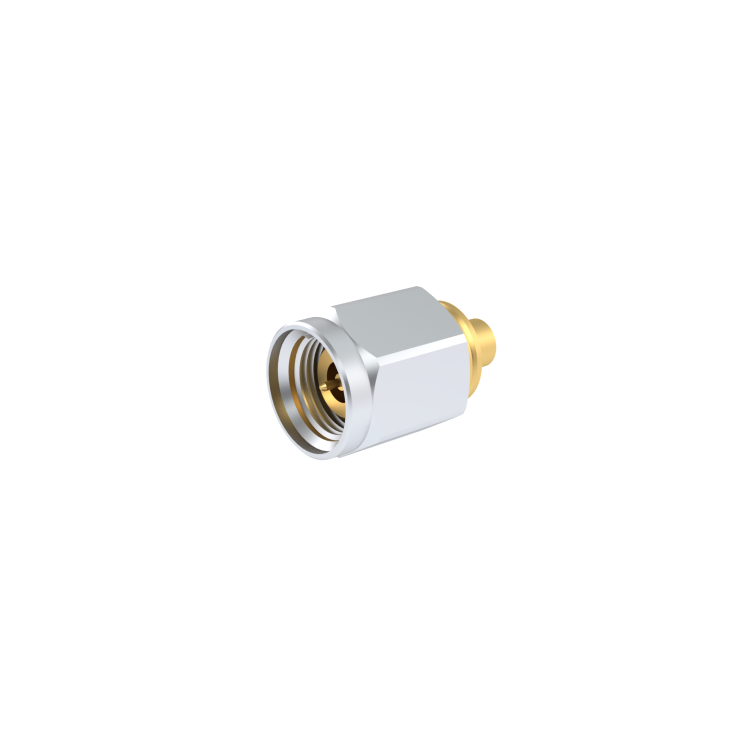

2.4 MM / STRAIGHT PLUG SOLDER TYPE CAPTIVE CONT. 085 MICROPOROUS CABLE
R327052202 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R327052202
Brand RADIALL
Product Type Connectors
Interface I 2.4 MM
Model CABLE CONNECTOR
Max Frequency (GHz) 50
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type PLUG
Gender 1 MALE
Cable Standard UT 85
Cable Attachment SOLDER TYPE
Cable Groups .085''/50 MICROPOROUS
Mating System SCREW-ON
Center Contact Plating GOLD OVER NICKEL
Body Plating GOLD OVER COPPER
