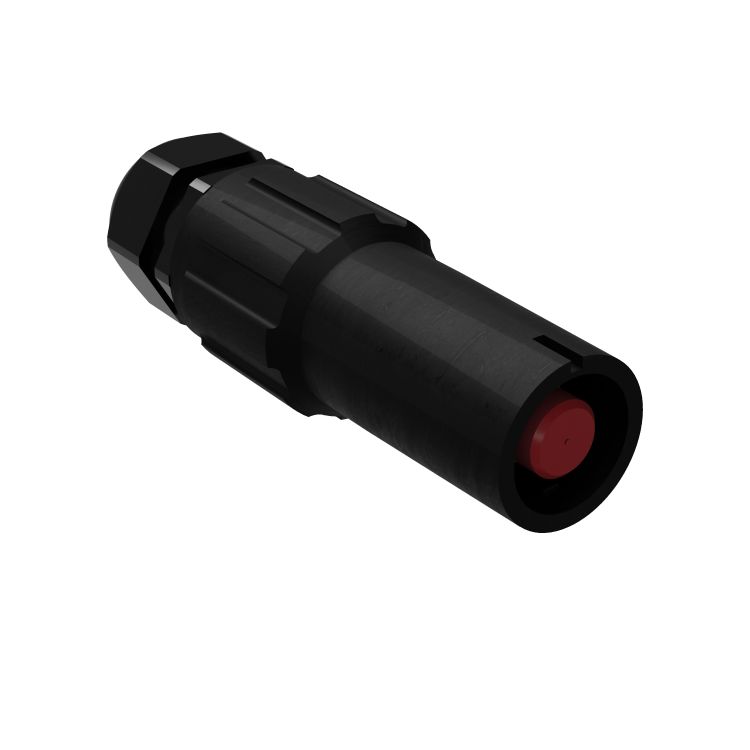

SPPC-PWL-LS-L2-BK-C-185-OS
VS390154 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
VS390154
Application Power supply
Series SPPC-PWL
Connector Type Single Pole Power Connectors
Number of Contacts 1
Drain Cable/Line source
External Cable Diameter 22mm-32mm
Contact Termination Crimp contacts 185mm2
Voltage Rating 1000 V
Current Rating 750 A
Color Black - Phase L2
Certification VDE
Sealing Protection IP66/67
Temperature Range -30°/+125°C
Mating Cycles 500
