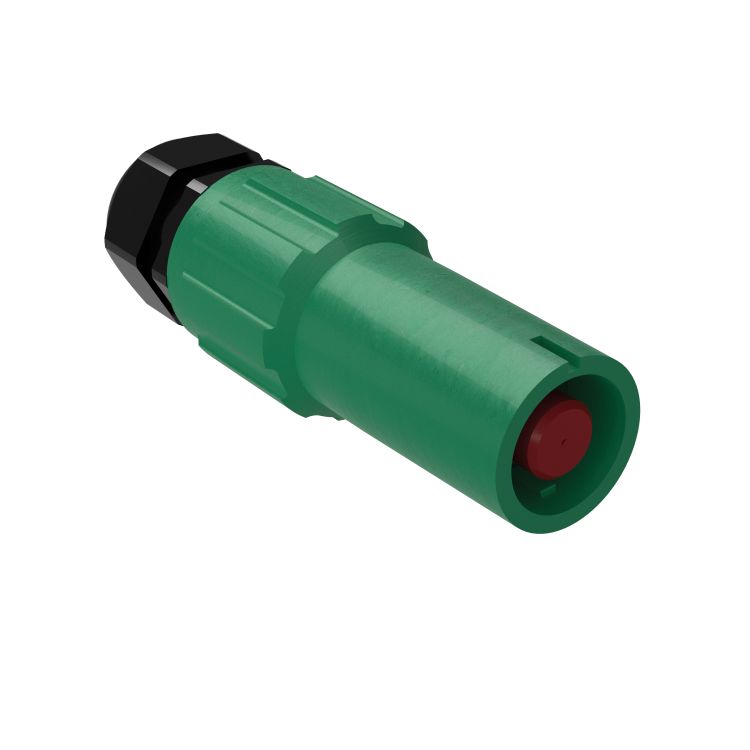

SPPC-PWL-LS-E-GN-C-185-OS

VS390226 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
3D.STEP
SPPC-PWL-LS-E-GN-C-185-OS

VS390226

Application Power supply

Series SPPC-PWL

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Cable/Line source

External Cable Diameter 22mm-32mm

Contact Termination Crimp contacts 185mm2

Voltage Rating 1000 V

Current Rating 750 A

Color Green - Earth

Certification VDE

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500
